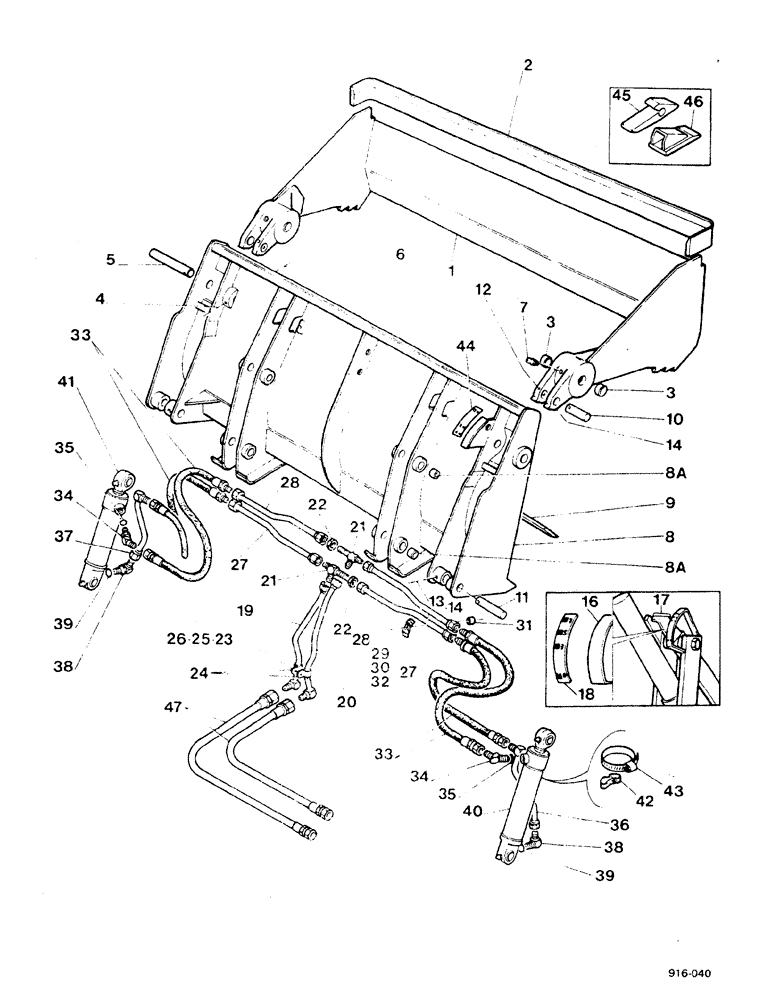

Запчасти Case 580F (198) - LOADER 4-IN-1 BUCKET (35) - HYDRAULIC SYSTEMS

E41677

BUCKET complete, 93" without teeth, 1-1/8 cu. yd., Includes: Ref. 1-14

1шт.

E35689

JAW

CLAM complete, Includes: Ref. 1, 2 and 3

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM

1шт.

2

E35363

BLADE

edge cutting

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

2шт.

6

131-652

LOCK NUT,3/8"-16, GB

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

E41680

BLADE

complete, Includes: Ref. 8, 8A and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE

1шт.

8a

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

8шт.

9

E35701

BLADE

edge cutting

1шт.

10

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

11

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

12

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

14

131-652

LOCK NUT,3/8"-16, GB

4шт.

E41732

BUCKET complete, 93" with teeth, 1-1/8 cu. yd., Includes: Ref. 1-14

1шт.

E36266

BUCKET

CLAM complete, Includes: Ref. 1, 2 and 3

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM

1шт.

2

E35363

BLADE

edge cutting

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

4шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

2шт.

6

131-652

LOCK NUT,3/8"-16, GB

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

E41680

BLADE

complete, Includes: Ref. 8, 8A and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE

1шт.

8a

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

8шт.

9

E35701

BLADE

edge cutting

1шт.

10

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

11

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

12

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

13

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

14

131-652

LOCK NUT,3/8"-16, GB

4шт.

16

D51816

PLATE

INDICATOR

1шт.

17

D51726

PIN

POINTER, up to No. 3.741.729

1шт.

17

E42732

INDICATOR

SPARE PART POINTER, starting from No. 3.741.730

1шт.

18

321-1707

DECAL

1шт.

19

D51615

TUBE

TUBE

1шт.

20

D51617

TUBE

1шт.

21

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

2шт.

22

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

38188

CLAMP

2шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

1шт.

27

E35716

TUBE,0.625" OD x 27.36" L

2шт.

28

E35715

TUBE,0.625" OD x 26.38" L

2шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

D33552

BUSHING

2шт.

32

D40236

CLAMP

2шт.

33

38410

HOSE

4шт.

34

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 35

2шт.

35

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

D51621

TUBE

1шт.

37

D51619

TUBE

1шт.

38

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 39

2шт.

39

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

REF

INSTRUCTION

CYLINDER, R.H., see Figure 166

1шт.

41

REF

INSTRUCTION

CYLINDER, L.H., see Figure 166

1шт.

42

D38648

BLOCK

SADDLE

2шт.

43

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

44

321-1708

DECAL

1шт.

45

D58499

SUPPORT

SHANK

1шт.

46

D58576

TOOTH

124 mm

1шт.

46

D58577

TOOTH

121 mm

1шт.

47

D51691

HOSE

2шт.

47

E37239

HOSE

with quick hitch system

2шт.

E36099

PROTECTOR

SPARE PART see Figure 196, not illustrated

1шт.
