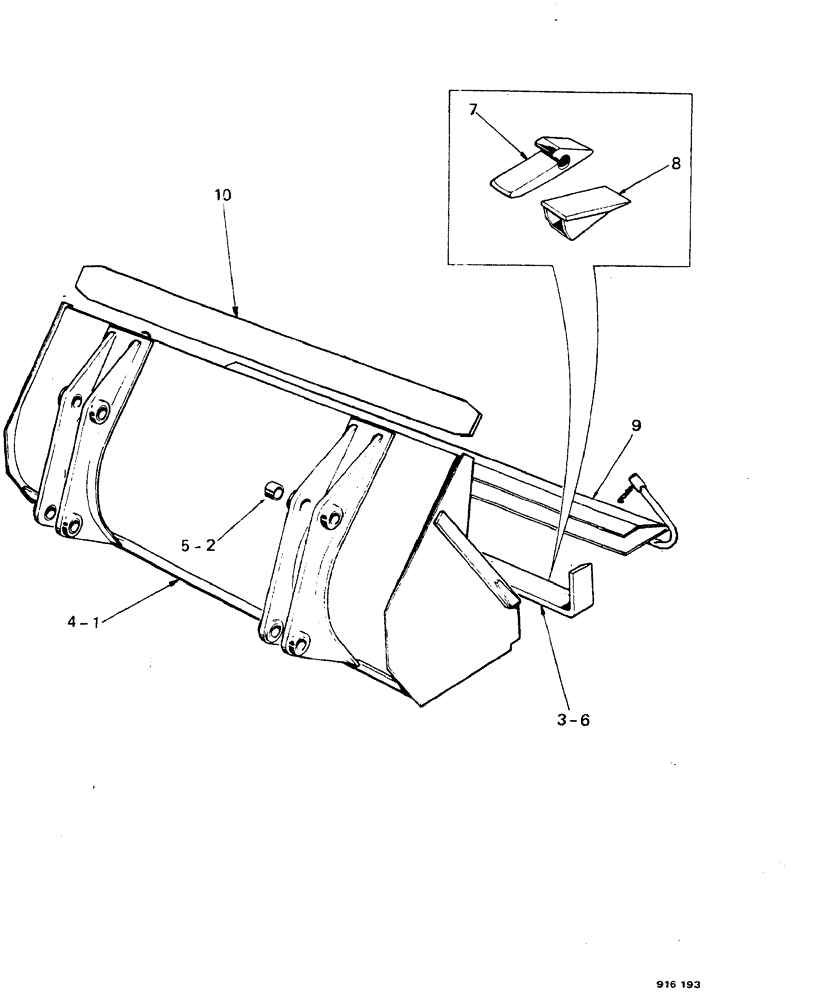

Запчасти Case 580F (196) - LOADER, BUCKET (35) - HYDRAULIC SYSTEMS

D65296

BUCKET complete, 90" without teeth, Includes: Ref. 1, 2 and 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET

1шт.

2

D65932

BUSHING,38.25mm ID x 47.65mm OD x 28mm L

8шт.

3

D65287

EDGE, CUTTING

1шт.

E34883

BUCKET complete, 90" with teeth

1шт.

E34579

BUCKET complete, 90" with teeth, for Germany only, Includes: Ref. 4, 5 and 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET

1шт.

5

D65932

BUSHING,38.25mm ID x 47.65mm OD x 28mm L

8шт.

6

D65287

EDGE, CUTTING

1шт.

E35355

BUCKET complete, 93" without teeth

1шт.

E35366

BUCKET complete, 93" with teeth

1шт.

E38909

BUCKET complete, 93" with teeth, for Germany only, Includes: Ref. 4, 5 and 6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET

1шт.

5

D65932

BUSHING,38.25mm ID x 47.65mm OD x 28mm L

8шт.

6

E35363

BLADE

edge cutting

1шт.

7

D26368

SUPPORT

TOOTH shank

1шт.

8

D58577

TOOTH

1шт.

9

E34580

GUARD ASSY.

for E34579

1шт.

9

E36099

PROTECTOR

SPARE PART for E38909

1шт.

10

E38050

BLADE

backfill, for 1 cu. yd. bucket

1шт.

10

E38047

BLADE

backfill, for 1-1/4 cu. yd. bucket

1шт.
