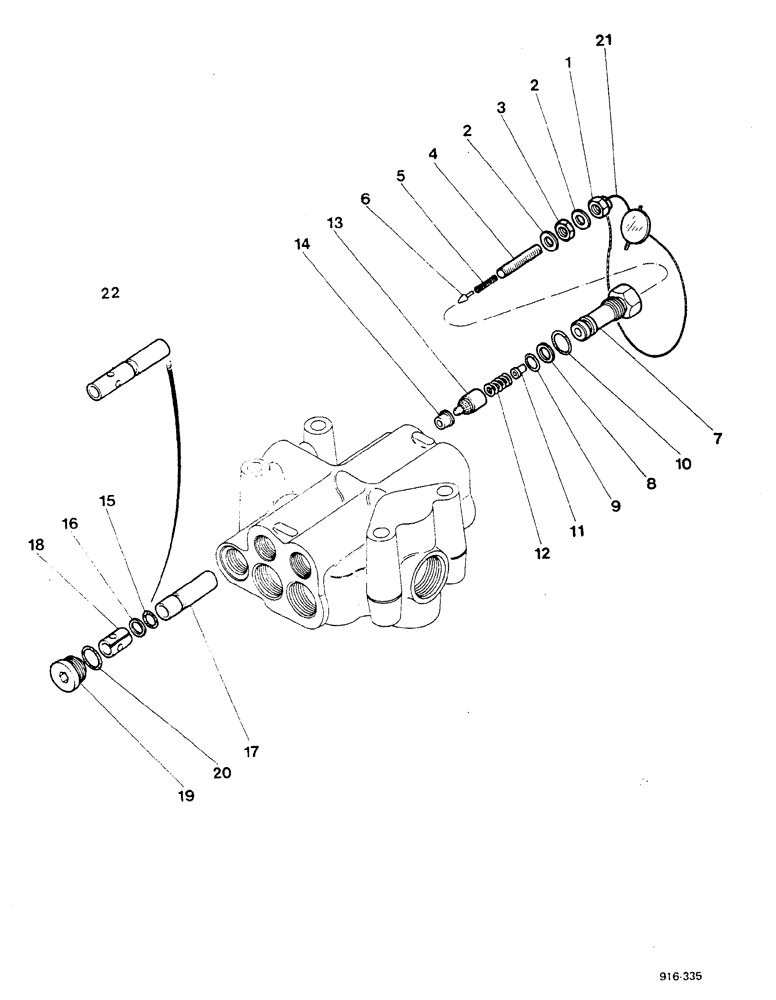

Запчасти Case 580F (190) - LOADER, MAIN RELIEF VALVE (35) - HYDRAULIC SYSTEMS

1

129-514

CROWN NUT,Low, 5/16" - 24

1шт.

1

E33771

NUT

SPARE PART for Germany only

1шт.

2

D26270

WASHER, SEALING

SEAL WASHER

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

176-296

SET SCREW,5/16"-24 x 1 3/4", Slotted

1шт.

5

D26268

SPRING

1шт.

6

D26267

PLUNGER

1шт.

7

A25291

CAP

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

1шт.

11

D26266

SEAT

1шт.

12

D52319

SPRING

1шт.

13

D37062

VALVE

poppet, complete

1шт.

14

D37063

SEAT

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

1шт.

16

L30443

BACK-UP RING,0.547" ID x 0.049" Width

1шт.

17

D37064

SLEEVE

if used, see Ref. 22

1шт.

18

D37065

SLEEVE

if used, see Ref. 22

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 20

1шт.

21

E33963

SEAL

SPARE PART lead, for Germany onl;y

1шт.

22

D83201

SLEEVE

used in place of Ref. 17 and 18

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
