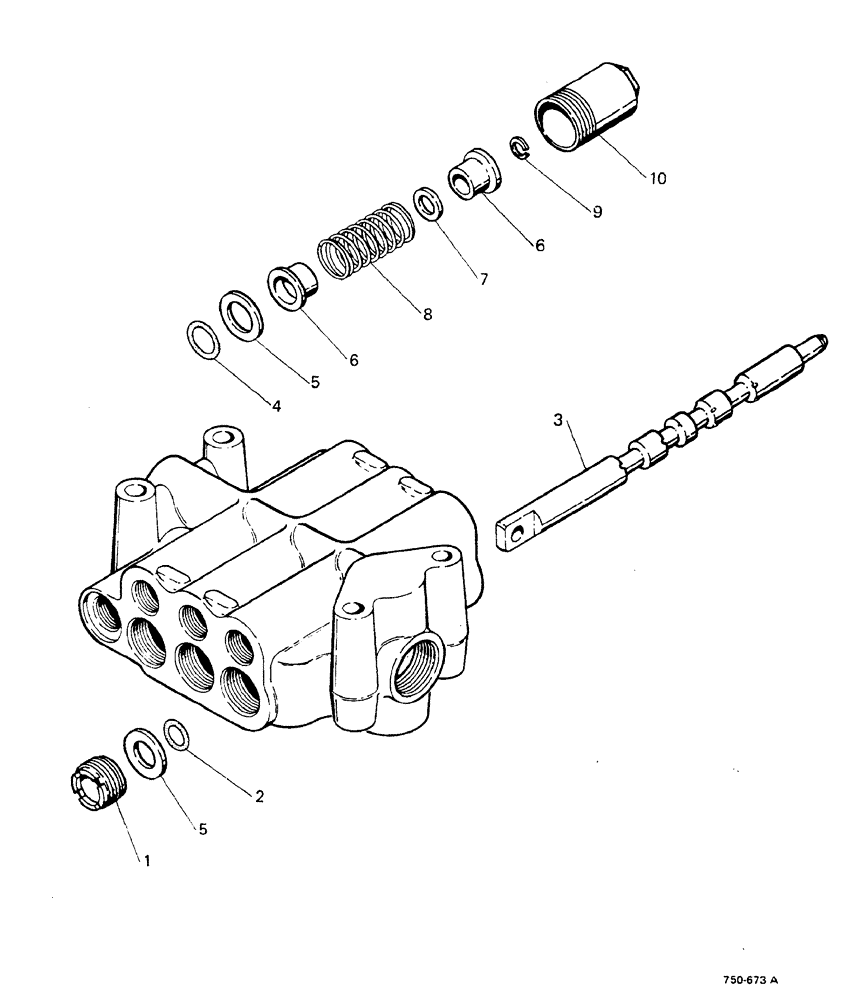

Запчасти Case 580F (182) - LOADER CONTROL VALVE, CLAM SPOOL (35) - HYDRAULIC SYSTEMS

D37050

SPOOL

complete, see Figure 180

1шт.

D37051

SPOOL

complete, see Figure 180

1шт.

D37052

SPOOL

complete, see Figure 180

1шт.

D37053

SPOOL

complete, see Figure 180

1шт.

1

L30744

GLAND

and SEAL

1шт.

2

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

5

A14535

RETAINER

2шт.

6

A14533

BRONZE BUSHING

RETAINER

2шт.

7

A25286

WASHER

1шт.

8

A14534

SPRING

1шт.

9

A27020

RING

snap

1шт.

10

A14529

CAP

1шт.
