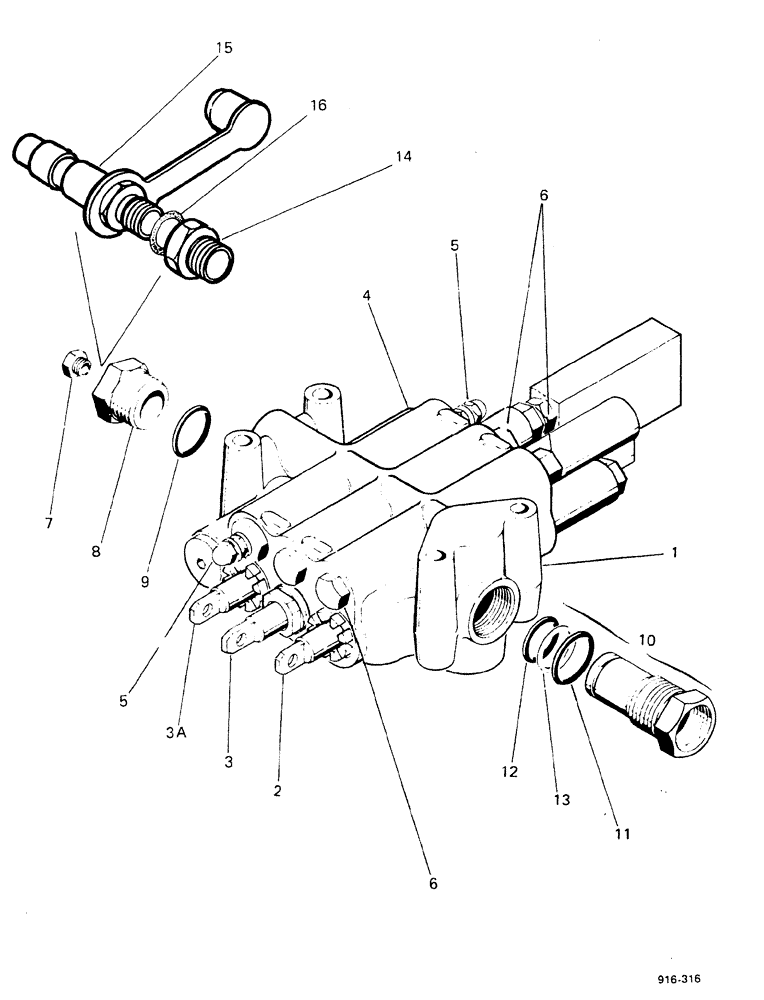

Запчасти Case 580F (180) - LOADER CONTROL VALVE, 3 SPOOL (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D84117
VALVE
up to No. 3.740.537, order D91874
1шт.
For identification, look for the valve part number on name plate
1шт.
1
D91874
VALVE
starting with No. 3.740.538
1шт.
For identification, look for the valve part number on name plate
1шт.
1
E41186
LOCK VALVE
for Germany only, Includes: Ref. 2-13
1шт.
2
D37050
SPOOL
see Figure 182
1шт.
2
D37051
SPOOL
see Figure 182
1шт.
2
D37052
SPOOL
see Figure 182
1шт.
2
D37053
SPOOL
see Figure 182
1шт.
3
D46024
SPOOL
see Figure 186
1шт.
3
D46025
SPOOL
see Figure 186
1шт.
3
N6592
VALVE
SPOOL, see Figure 186
1шт.
3
D46027
SPOOL
see Figure 186
1шт.
3a
N6591
SPOOL
see Figure 184
1шт.
4
NSS
NOT SOLD SEPARAT
VALVE main relief, see Figure 190
1шт.
5
NSS
NOT SOLD SEPARAT
VALVE secondary relief, see Figure 188
2шт.
6
NSS
NOT SOLD SEPARAT
VALVE check, see Figure 192
4шт.
7
221-662
PLUG,Hex Hd, 1/4"-18
1шт.
8
D38825
ADAPTER
ADAPTER, Includes: Ref. 9
1шт.
9
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
D89496
FITTING
starting with No. 3.740.538, Includes: Ref. 11-13
1шт.
11
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
12
G34000
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
small, on fitting without backup ring
1шт.
12
A25590
O-RING,15" ID x 1 1" OD x 3/32"
small, on fitting with backup ring
1шт.
13
L31332
BACK-UP RING
backup, if used
1шт.
10
D61251
FITTING
up to No.3.740.537, Includes: Ref. 11-13
1шт.
11
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
12
L32680
RING
small, on fitting without backup ring
1шт.
12
A25590
O-RING,15" ID x 1 1" OD x 3/32"
small, on fitting with backup ring
1шт.
13
L31332
BACK-UP RING
backup, if used
1шт.
14
E41773
FITTING
SPARE PART REDUCER, for Sweden only
1шт.
15
E41774
SEAL
SPARE PART FITTING, for Sweden only, Includes: Ref. 16
1шт.
16
A30825
O-RING,0.364" ID x 0.504" OD x 0.07"
for Sweden only
1шт.
D37050
SPOOL
black or letter code W, Serial Range: .73700"-.73709"
1шт.
D37051
SPOOL
blue or letter code X, Serial Range: .73710"-.73719"
1шт.
D37052
SPOOL
yellow or letter code Y, Serial Range: .73720"-.73729"
1шт.
D37053
SPOOL
green or leter code Z, Serial Range: .73730"-.73740"
1шт.
D46024
SPOOL
black or letter code W, Serial Range: .73700"-.73709"
1шт.
D46025
SPOOL
blue or letter code X, Serial Range: .73710"-.73719"
1шт.
D46026
PLUG
yellow or letter code Y, Serial Range: .73720"-.73729"
1шт.
D46027
SPOOL
green or letter code Z, Serial Range: .73730"-.73740"
1шт.
Выбрано товаров: 41
