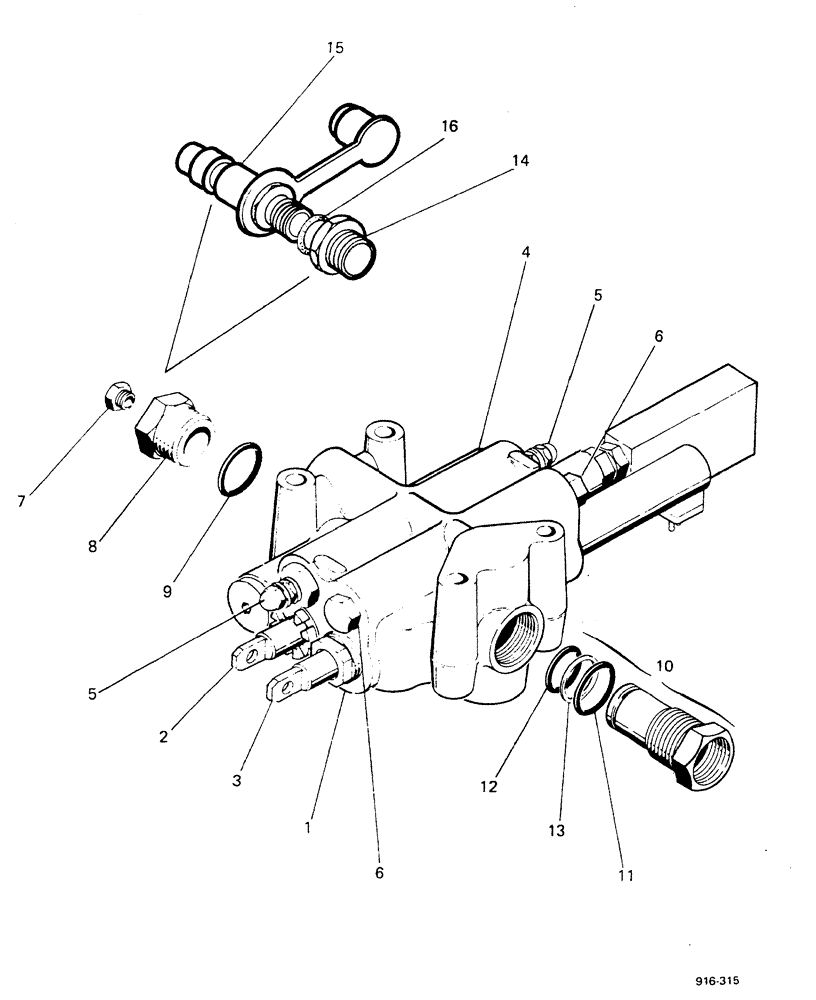

Запчасти Case 580F (178) - LOADER CONTROL VALVE, 2 SPOOL (35) - HYDRAULIC SYSTEMS

1

D84115

VALVE

order D91872, up to No. 3.740.010

1шт.

For identification, look for the valve part number on name plate

1шт.

1

D91872

VALVE

starting with No. 3.740.011

1шт.

For identification, look for the valve part number on name plate

1шт.

1

E41187

VALVE, for Germany only, Includes: Ref. 2-13

1шт.

2

N6591

SPOOL

see Figure 184

1шт.

3

D46024

SPOOL

see Figure 186

1шт.

3

D46025

SPOOL

see Figure 186

1шт.

3

D46026

PLUG

SPOOL, see Figure 186

1шт.

3

D46027

SPOOL

see Figure 186

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE main relief, see Figure 190

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE secondary relief, see Figure 188

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE check, see Figure 192

2шт.

7

221-662

PLUG,Hex Hd, 1/4"-18

1шт.

8

D38825

ADAPTER

ADAPTER Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

D89496

FITTING

starting with No. 3.740.011, Includes: Ref. 11, 12 and 13

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

small, on fitting without backup ring

1шт.

12

A25590

O-RING,15" ID x 1 1" OD x 3/32"

smail, on fitting with backup ring

1шт.

13

L31332

BACK-UP RING

backup, if used

1шт.

10

D61251

FITTING

up to No. 3.740.010, Includes: Ref. 11, 12 and 13

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

L32680

RING

small, on fitting without backup ring

1шт.

12

A25590

O-RING,15" ID x 1 1" OD x 3/32"

small, on fitting with backup ring

1шт.

13

L31332

BACK-UP RING

backup, if used

1шт.

14

E41773

FITTING

SPARE PART REDUCER, for Sweden only

1шт.

15

E41774

SEAL

SPARE PART FITTING, for Sweden only, Includes: Ref. 16

1шт.

16

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

for Sweden only

1шт.
