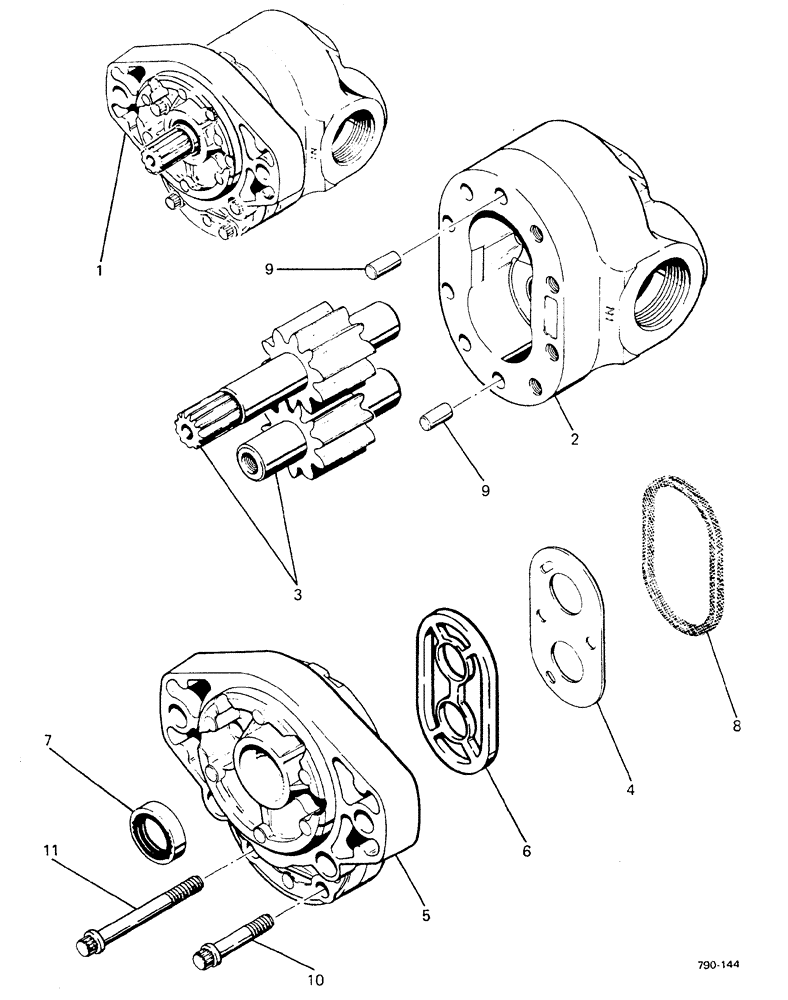

Запчасти Case 580F (170) - HYDRAULICS, PUMP, TRW (35) - HYDRAULIC SYSTEMS

1

D49241

PUMP, HYDRAULIC

TRW, Ref. 19-920178-00, Includes: Ref. 2-11

1шт.

For identification see name plate on pump, check mark and model number of pump befor ordering parts, see other pump options on Figure 168

1шт.

1

D80083

PUMP

TRW, Ref. GP 92033, Includes: Ref. 2-11

1шт.

For identification see name plate on pump, check mark and model number of pump befor ordering parts, see other pump options on Figure 168

1шт.

D53690R

REMAN-HYD PUMP

580F AFTER S/N 3739160 (EUROPE), Reman for New P/N D80083

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

D50103

GEAR

SET

1шт.

N6297

COVER

ASSY., Includes: Ref. 4-9

1шт.

4

D50104

PLATE

1шт.

Part of KIT P/N N6296

1шт.

5

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of KIT P/N N6296

1шт.

7

D52477

SEAL

1шт.

Part of KIT P/N N6296

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of KIT P/N N6296

1шт.

9

NSS

NOT SOLD SEPARAT

DOWEL

2шт.

10

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

3шт.

11

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

5шт.

N6296

SEAL KIT

KIT repair, Includes: Ref. 4, 6, 7 and 8

1шт.
