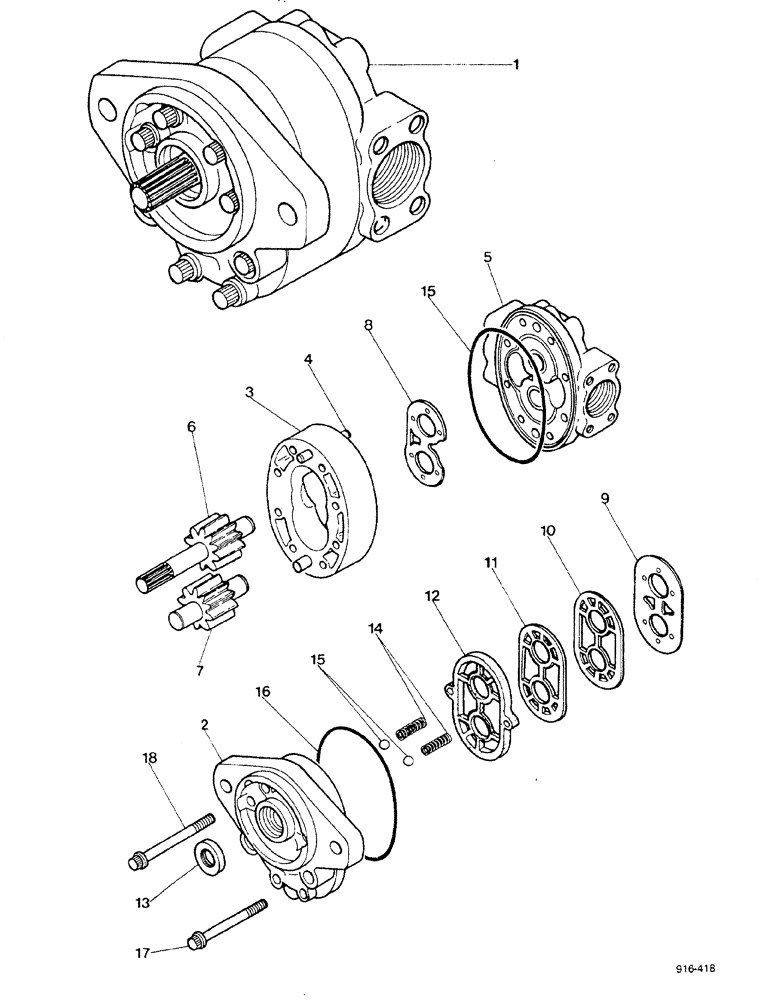

Запчасти Case 580F (168) - HYDRAULICS, PUMP, CESSNA (35) - HYDRAULIC SYSTEMS

1

D48950

PUMP

Cessna, Ref. 24505- LAD, Includes: Ref. 2-18

1шт.

D53690R

REMAN-HYD PUMP

580F AFTER S/N 3739160 (EUROPE), Reman for New P/N D48950

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

D48879

COVER

1шт.

3

D56471

HOUSING

1шт.

4

D48882

PIN

2шт.

5

D48883

COVER

1шт.

D48881

GEAR

SET, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR

1шт.

D59656

GASKET KIT

PUMP, Includes: Ref. 8-16

1шт.

8

A45358

PLATE

1шт.

For identification see name plate on pump, check mark and model number of pump befor ordering parts, see other pump options on Figure 170

1шт.

9

H335331

DIAPHRAGM

1шт.

10

H260935

GASKET

1шт.

11

H260927

GASKET

1шт.

12

D48888

SEAL

1шт.

13

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

1шт.

14

D31403

SPRING

2шт.

15

211-312

BALL,13/32" Dia

2шт.

16

H756221

O-RING,4.987" ID x 5.193" OD

2шт.

17

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

3/8 x 3-1/2

4шт.

18

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

3/8 x 3-3/4

4шт.
