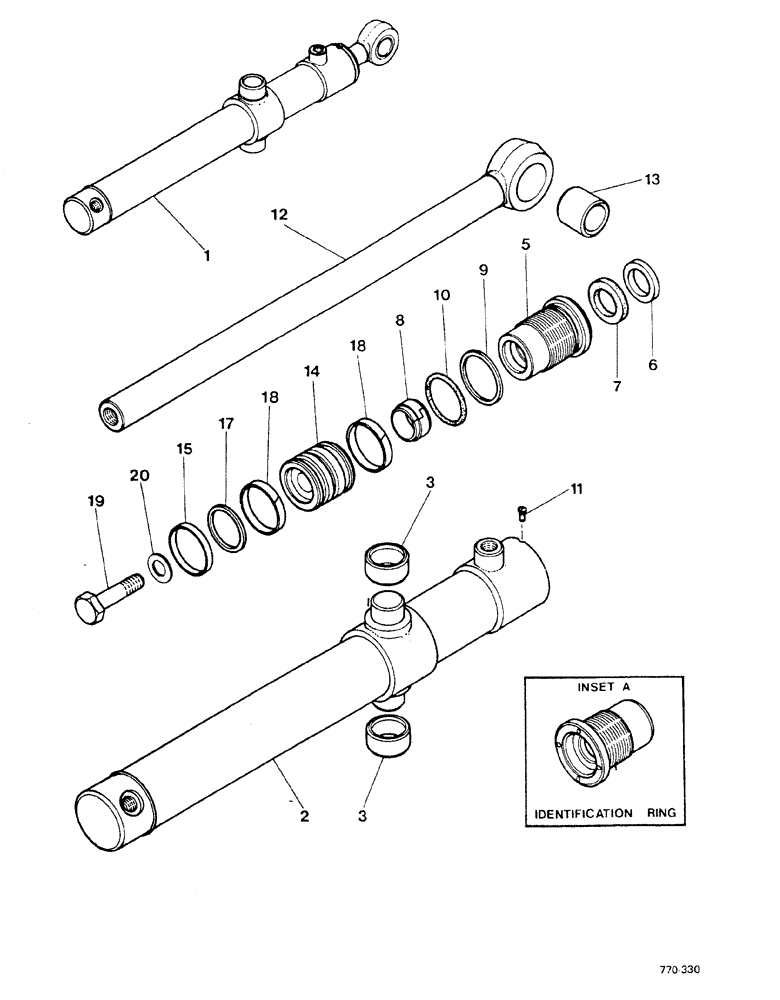

Запчасти Case 580F (164) - LOADER, TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

G101186

CYLINDER

ASSY., R.H., Includes: Ref. 2-20

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

1

G101187

CYLINDER

ASST., L.H., Includes: Ref. 2-20

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

D31098

TUBE

ASSY., R.H., Includes: Ref. 3

1шт.

2

D31099

TUBE

ASSY., L.H., Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

2шт.

G33487

GLAND

ASSY., Includes: Ref. 5-10

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER

1шт.

Part of SET P/N G102406

1шт.

7

D36969

CUP

SEAL, see G100776

1шт.

Part of SET P/N G102406

1шт.

8

D27706

WIPER SEAL

WIPER, if used

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102406

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of SET P/N G102406

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

12

G33422

ROD

ASSY., Includes: Ref. 13

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

1шт.

14

G100706

PISTON

1шт.

15

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102406

1шт.

17

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

1шт.

Part of SET P/N G102406

1шт.

18

G100714

RING

2шт.

Part of SET P/N G102406

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

G102406

SEAL

SET of, Includes: Ref. 6, 7, 9, 10, 15, 17 and 18

1шт.

G100776

SEAL

see D36969, special seal for extreme heat or cold

1шт.
