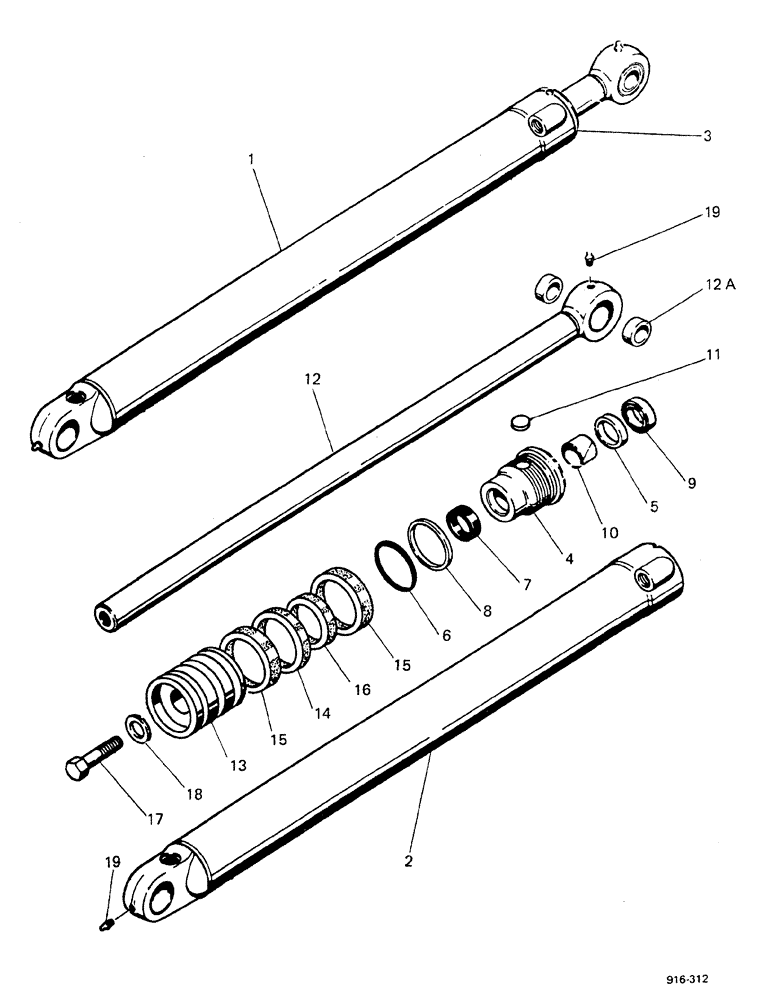

Запчасти Case 580F (162) - LOADER, LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

1

G101196

CYLINDER

ASSY., R.H., Includes: Ref. 2-19

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

1

G101197

CYLINDER

ASSY., L.H., Includes: Ref. 2-19

1шт.

Look for cylinder assembly part number to be stamped on cylinder gland

1шт.

2

G35398

TUBE,39.68" L

R.H.

1шт.

2

G35399

TUBE,39.68" L

L.H.

1шт.

3

G102874

GLAND

complete, Includes: Ref. 4-11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING

1шт.

6

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of SET P/N G102409

1шт.

7

D36971

RING

See P/N G100778

1шт.

Part of SET P/N G102409

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

Part of SET P/N G102409

1шт.

9

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper

1шт.

Part of SET P/N G102409

1шт.

10

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING

1шт.

Part of SET P/N G102409

1шт.

11

G102569

PLUG

1шт.

12

G100468

PISTON ROD

ASSY., Includes: Ref. 12A

1шт.

12a

G35396

BUSHING

2шт.

13

G100640

PISTON

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

1шт.

Part of SET P/N G102409

1шт.

15

S109445

RING,82.55mm OD, Ext

2шт.

Part of SET P/N G102409

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

1шт.

Part of SET P/N G102409

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G102409

SEAL

SET of, Includes Ref. 6, 7, 8, 9, 10, 14, 15 and 16

1шт.

G100778

SEAL

see D36971, special seal for extreme heat or cold

1шт.
