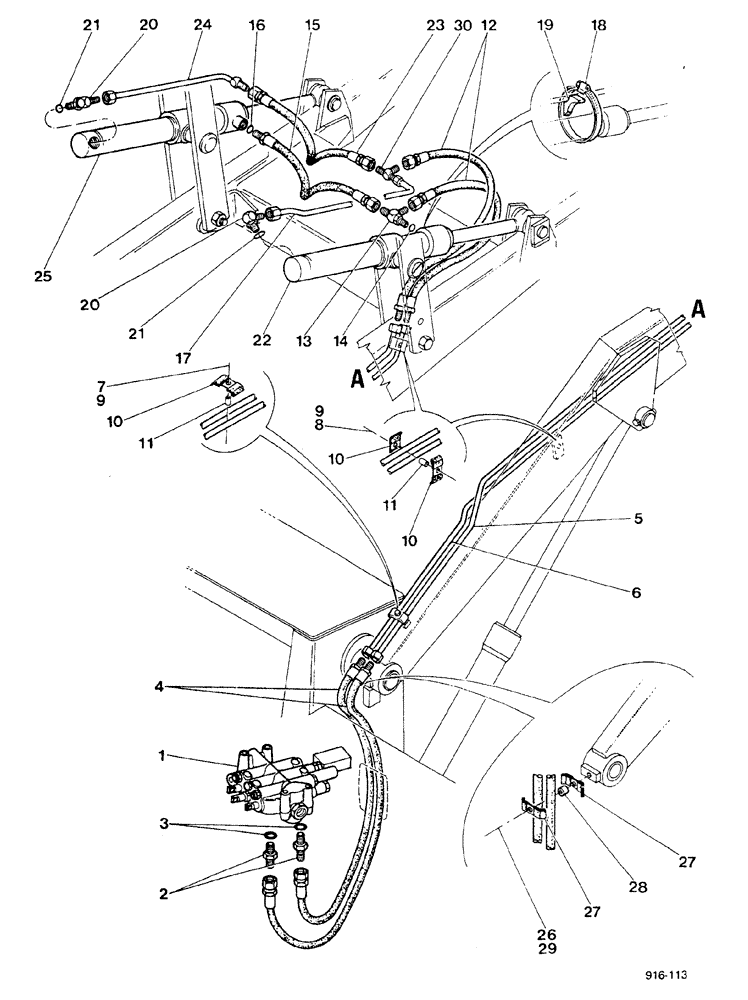

Запчасти Case 580F (160) - LOADER, TILT CYLINDER, VALVE (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, see Figure 178 and 180

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 3

2шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

L55738

HOSE

2шт.

5

D70104

HYD TUBE,12 mm OD x 1533, 100 mm L

1шт.

6

D70864

TUBE

1шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

3шт.

10

R17319

CLAMP

5шт.

11

D73049

BUSHING

3шт.

12

D73244

HOSE

2шт.

13

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 14

1шт.

14

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

D67731

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

Includes: Ref. 16

1шт.

16

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

D75601

TUBE

1шт.

18

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

19

D38648

BLOCK

SPACER

2шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 21

2шт.

21

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

REF

INSTRUCTION

CYLINDER, R.H., see Figure 164

1шт.

23

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

1шт.

24

D67617

TUBE

1шт.

25

REF

INSTRUCTION

CYLINDER, L.H., see Figure 164

1шт.

26

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

cap

1шт.

27

D33316

CLAMP

2шт.

28

D72237

BUSHING

SPARE PART

1шт.

29

92-5

LOCK WASHER,5/16"

1шт.

30

218-586

TEE,37 Degree, 7/8"-14 x 3/4"-16, Run

1шт.
