(158) - LOADER, LIFT CYLINDER, VALVE

Запчасти Case 580F (158) - LOADER, LIFT CYLINDER, VALVE (35) - HYDRAULIC SYSTEMS

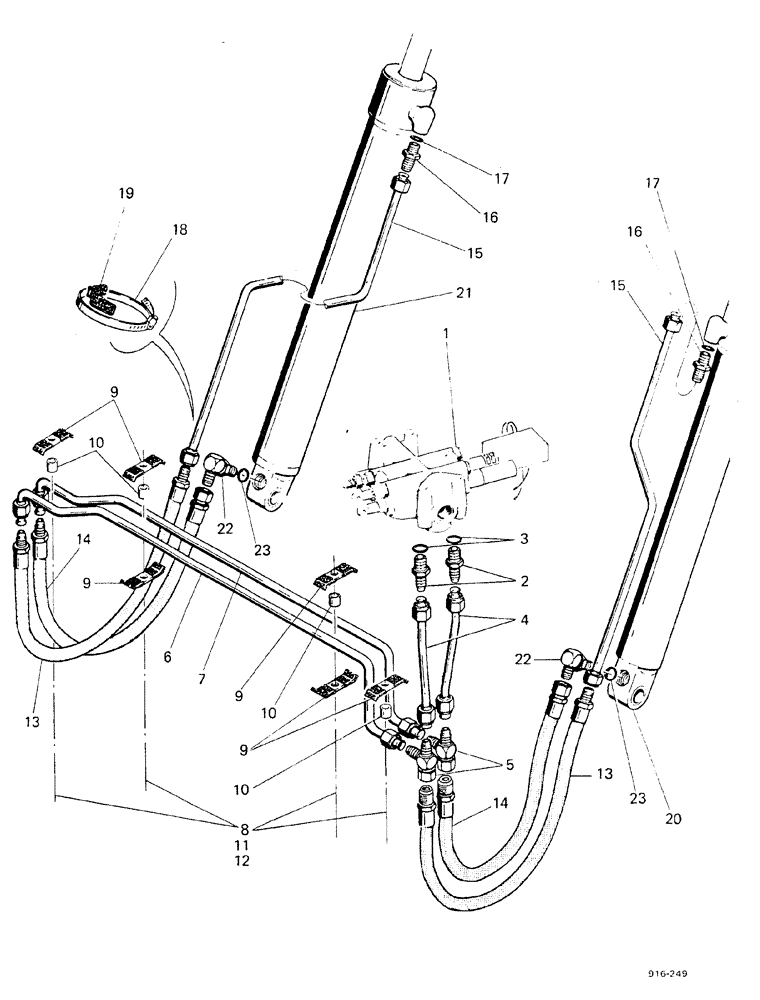

Схема запчастей Case 580F - (158) - LOADER, LIFT CYLINDER, VALVE (35) - HYDRAULIC SYSTEMS
2
16
14
10
12
22
17
9
1
22
11
20
16
9
7
4
3
9
9
6
13
8
15
18
13
19
5
23
15
10
10
21
23
14
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE, see Figure 178 and 180

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: Ref. 3

2шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D68905

TUBE

2шт.

5

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

CONNECTOR

2шт.

6

D68910

TUBE

1шт.

7

D68912

TUBE

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

9

D40236

CLAMP

6шт.

10

D73071

SPACER

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

25-106

NUT,3/8"-16, G5

4шт.

13

D71600

HOSE

2шт.

14

38410

HOSE

2шт.

15

D69664

TUBE

SPARE PART

2шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: Ref. 17

2шт.

17

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

19

D38648

BLOCK

SPACER

2шт.

20

REF

INSTRUCTION

CYLINDER, R.H., see Figure 162

1шт.

21

REF

INSTRUCTION

CYLINDER, L.H., see Figure 162

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref. 23

2шт.

23

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
