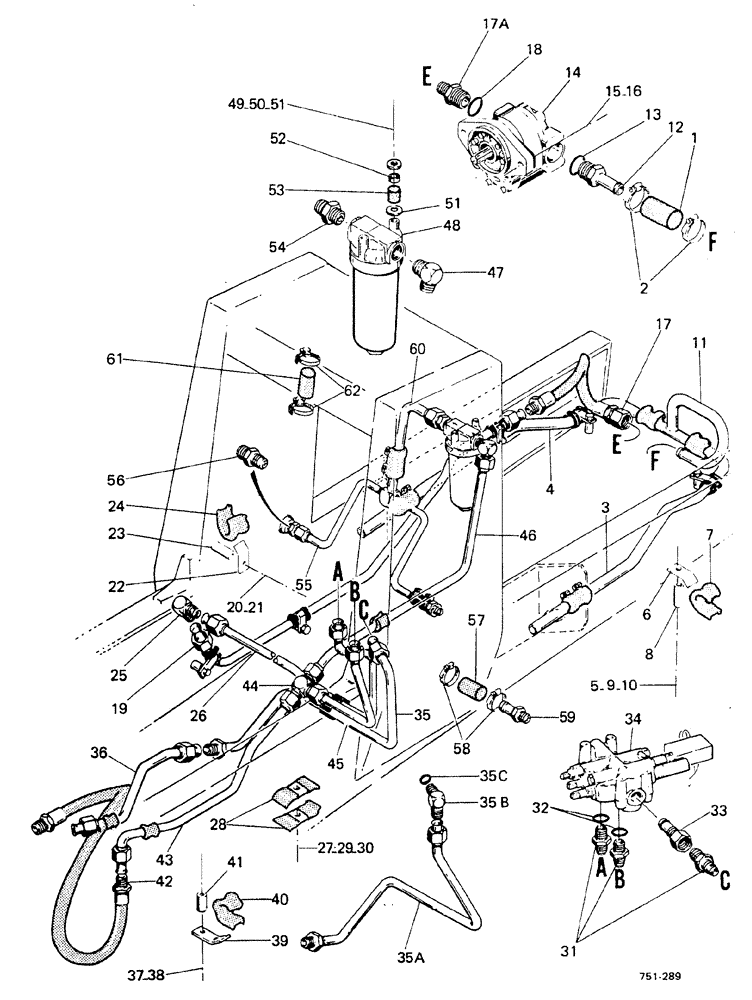

Запчасти Case 580F (152) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

D36350

HOSE

5шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

10шт.

3

D66137

TUBE

SPARE PART R.H.

1шт.

4

D66136

PIPE

L.H.

1шт.

5

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

6

D71659

CLAMP

2шт.

7

CASD9796

2шт.

8

D70781

SPACER

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

25-108

NUT,1/2"-13, G5

2шт.

11

D67002

TUBE

MANIFOLD

1шт.

12

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. Ref. 13

1шт.

13

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

14

REF

INSTRUCTION

PUMP, see Figures 168 and 170

1шт.

15

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

D68547

HOSE,19.05mm ID x 200mm L, SAE 100R2

1шт.

17a

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 18

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

D67604

TUBE

1шт.

20

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

D67211

CLAMP

4шт.

23

E41877

SPACER

4шт.

24

D95795

PAD

4шт.

25

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

elbow

1шт.

26

D67610

TUBE

SPARE PART

1шт.

27

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

28

D33316

CLAMP

2шт.

29

195-21

WASHER,5/16"

1шт.

30

131-651

NUT,5/16"-18, GB

NUT

1шт.

31

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 32

1шт.

quantity is 2 or 3

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

D61251

FITTING

1шт.

34

REF

INSTRUCTION

VALVE, see Figures 178 and 180

1шт.

35

D68883

TUBE

SPARE PART

1шт.

35a

D72570

TUBE

1шт.

35b

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 35C

1шт.

35c

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

D68886

TUBE

SPARE PART

1шт.

37

13-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

D67211

CLAMP

2шт.

40

D95795

PAD

2шт.

41

E41877

SPACER

2шт.

42

D66506

HOSE

1шт.

43

D76619

TUBE

1шт.

44

218-598

TEE,1 5/16"-12 37 Degree

1шт.

45

D67421

TUBE

SPARE PART

1шт.

45

D72572

TUBE

1шт.

46

D68062

TUBE

SPARE PART

1шт.

47

D65646

FITTING

elbow, 90 deg

1шт.

48

REF

INSTRUCTION

FILTER, see Figure 226

1шт.

49

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

50

92-8

LOCK WASHER,1/2"

2шт.

51

195-36

WASHER

4шт.

52

D65660

BUSHING

SPARE PART

2шт.

53

D67915

GROMMET

2шт.

54

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1шт.

55

D67007

TUBE

1шт.

56

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

L.H.

1шт.

57

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

58

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

59

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

elbow

1шт.

60

D68060

PIPE

1шт.

61

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

1шт.

62

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.
