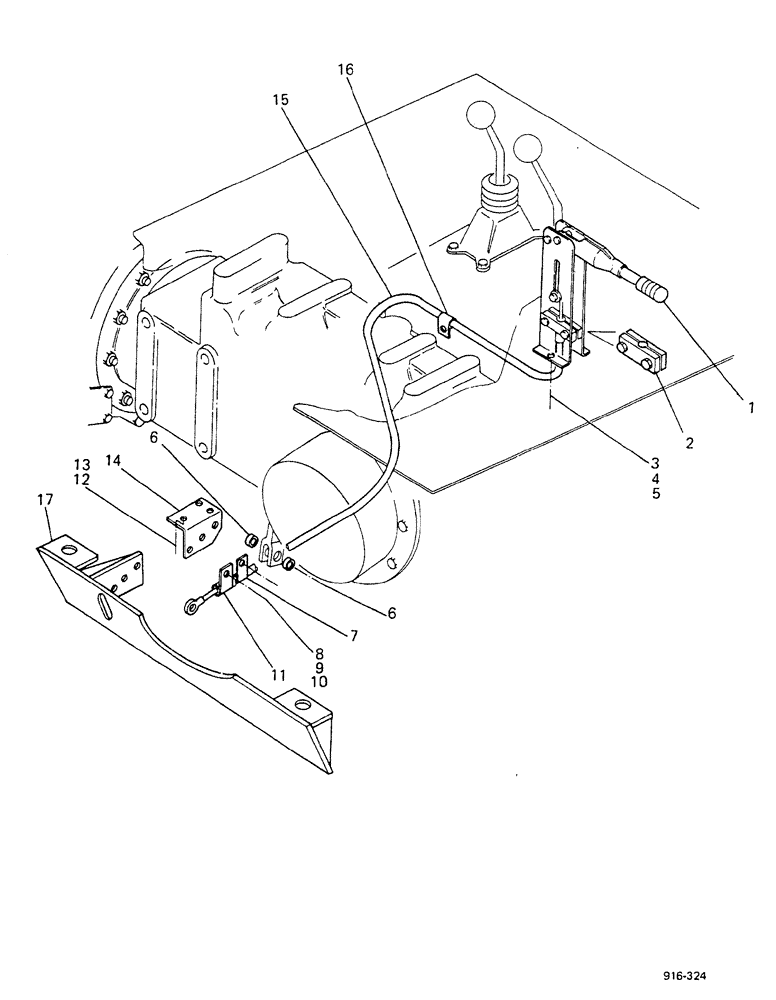

Запчасти Case 580F (134) - PARKING BRAKE, FOR GERMANY (33) - BRAKES & CONTROLS

1

E41736

LEVER

Includes Stop Assy

1шт.

2

E42103

STOP

SPARE PART ASSY.

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

E34604

BUSHING

SPARE PART

2шт.

7

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

14

E41689

BRACKET

SPARE PART

1шт.

15

D74907

CABLE

R.H.

1шт.

16

49836

CLAMP

1шт.

17

E41762

GUARD rear

1шт.

For 4 wheel drive

1шт.
