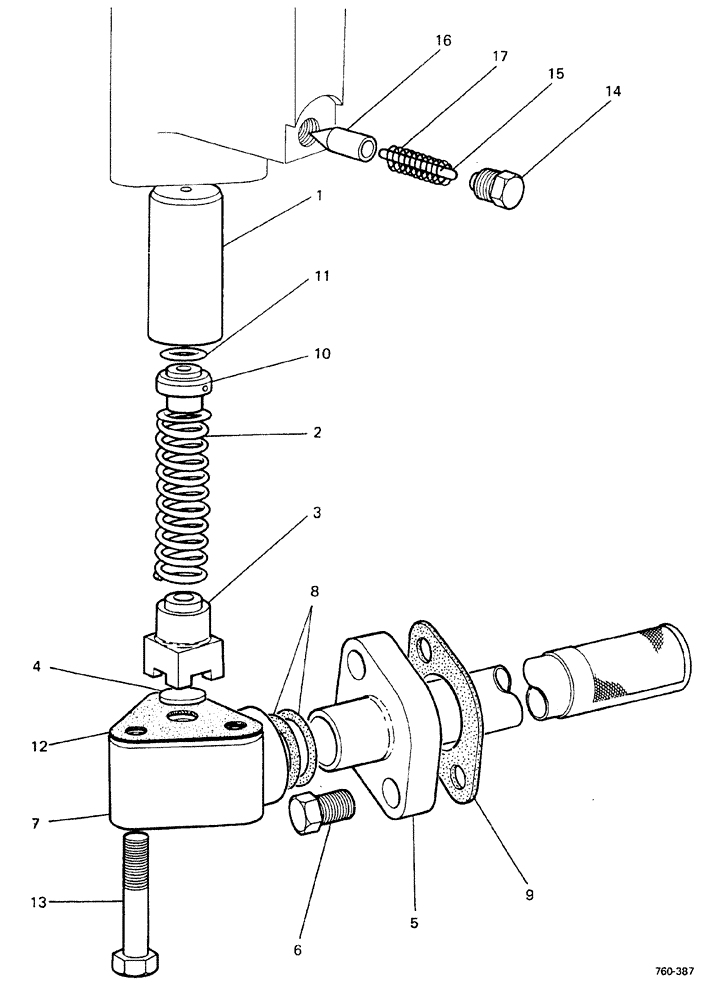

Запчасти Case 580F (082) - GEAR, BOX, PUMP AND FILTER (27) - REAR AXLE SYSTEM

1

K926889

PLUNGER

DC

1шт.

2

K625214

SPRING

DC

1шт.

3

K921152

VALVE

HOUSING, DC

1шт.

4

K623815

PLUG

special, DC

1шт.

5

K948830

TUBE

suction, DC

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

set, DC

2шт.

192-21

LOCK WASHER,3/8"

DC

2шт.

7

K948827

ADAPTER

DC

1шт.

8

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

DC

2шт.

9

K948788

GASKET

DC

1шт.

10

K926864

VALVE

ASSY., DC

1шт.

11

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

O, DC

1шт.

12

K926867

GASKET

DC

1шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

DC

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

DC

3шт.

14

K945045

VALVE

RETAINER, DC

1шт.

15

K620027

NEEDLE

ROLLER, DC

1шт.

16

K921370

SYMBOLS

SYMBOL VALVE, DC

1шт.

17

K625216

SPRING

DC

1шт.
