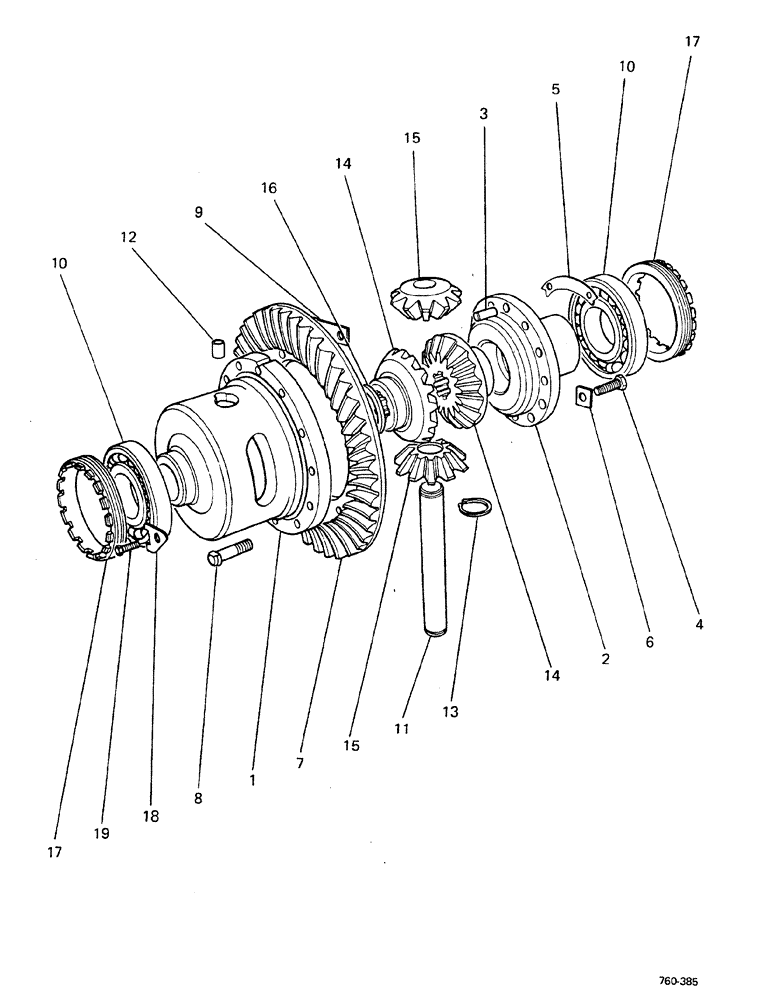

Запчасти Case 580F (078) - DIFFERENTIAL (27) - REAR AXLE SYSTEM

1

K951954

HOUSING

CAGE

1шт.

2

K903184

FLANGE

PLATE

1шт.

3

K621801

PIN

dowel

3шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

set

9шт.

5

K903185

WASHER

tab

3шт.

6

K626372

WASHER

tab

3шт.

7

REF

INSTRUCTION

BEVEL PINION and GEAR, see Figure 076 Ref. 1

1шт.

8

K951067

BOLT

special

1шт.

K905664

WHEEL BOLT

11шт.

9

K30236

WASHER

tab

6шт.

25-107

NUT,7/16"-14, G5

12шт.

10

K19010

BALL BEARING

ball

2шт.

11

K951955

PIN

1шт.

12

K621858

PIN

dowel

1шт.

13

K12207

RING, SNAP

RING SNAP

2шт.

14

K30234

CONE PINION

BEVEL WHEEL, 16 teeth

2шт.

15

K942317

DIFFERENTIAL

BEVEL PINION, 10 teeth

2шт.

16

K940805

WASHER, THRUST

1шт.

17

K15007

RING, LOCKING

RING, LOCK ADJUSTER WHEEL

2шт.

18

K626420

WASHER

LOCKPLATE

2шт.

19

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.
