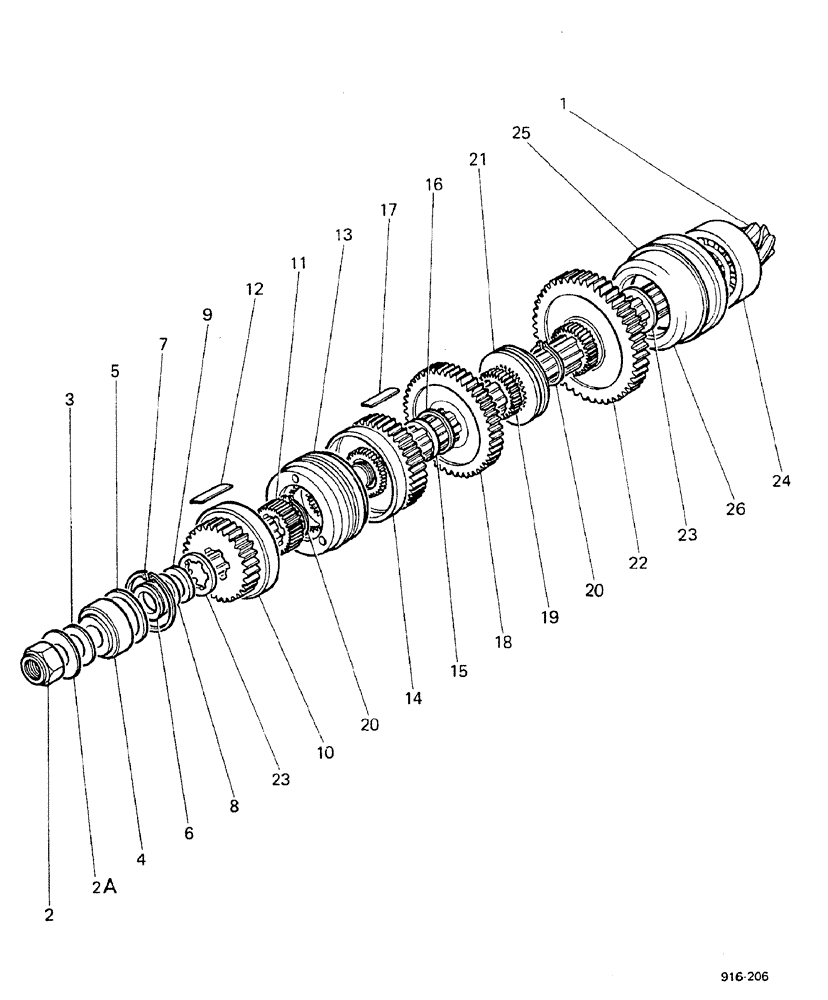

Запчасти Case 580F (076) - BEVEL PINION SHAFT (27) - REAR AXLE SYSTEM

1

K964846

GEAR-SET

BEVEL PINION and GEAR

1шт.

2

K622803

NUT

lock

1шт.

3

K14687

WASHER

1шт.

1

K965902

GEAR

AND BEVEL PINION

1шт.

For 4 wheel drive

1шт.

2

K921817

NUT

1шт.

For 4 wheel drive

1шт.

2a

K921818

WASHER

tab

1шт.

For 4 wheel drive

1шт.

3

K921819

WASHER

1шт.

For 4 wheel drive

1шт.

4

A16794

BEARING CUP

roller

1шт.

A16795

ROLLER BEARING,1.375" ID x 1.125"

roller

1шт.

5

K627253

BUSHING

1шт.

6

K917844

BUSHING

1шт.

7

K17023

CIRCLIP

snap

1шт.

8

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

.002"

1шт.

K917846

SHIM

.005"

1шт.

K917847

SHIM

.010"

1шт.

K917848

SHIM

.030"

1шт.

9

K940969

BUSHING

1шт.

10

K948589

GEAR

high

1шт.

11

K943435

GEAR

fixed, dog clutch

2шт.

12

K940989

PLATE

PAD bearing

12шт.

13

K928223

GEAR

SLIDING and CONES, Includes Spring

1шт.

K926266

SPRING

6шт.

14

K942817

GEAR

medium

1шт.

15

K948598

RING

snap

2шт.

16

K943615

SPACER

RING snap

1шт.

17

K948591

PAD

bearing

12шт.

18

K948579

GEAR

2nd and 5th

1шт.

19

K948590

GEAR

fixed, dog clutch

2шт.

20

K621865

RING, SNAP

RING SNAP

2шт.

21

K946652

CLUTCH

GEAR sIiding, dog clutch

1шт.

22

K948578

GEAR

1st

1шт.

23

K940975

DISC

WASHER

2шт.

24

K620062

BEARING, ROLLER

1шт.

25

K943536

HOUSING

bevel pinion bearing

1шт.

26

K943665

SHIM

.030"

1шт.

K943666

SHIM

.015"

1шт.

K943667

SHIM

.005"

1шт.

K943668

SHIM

.002"

1шт.
