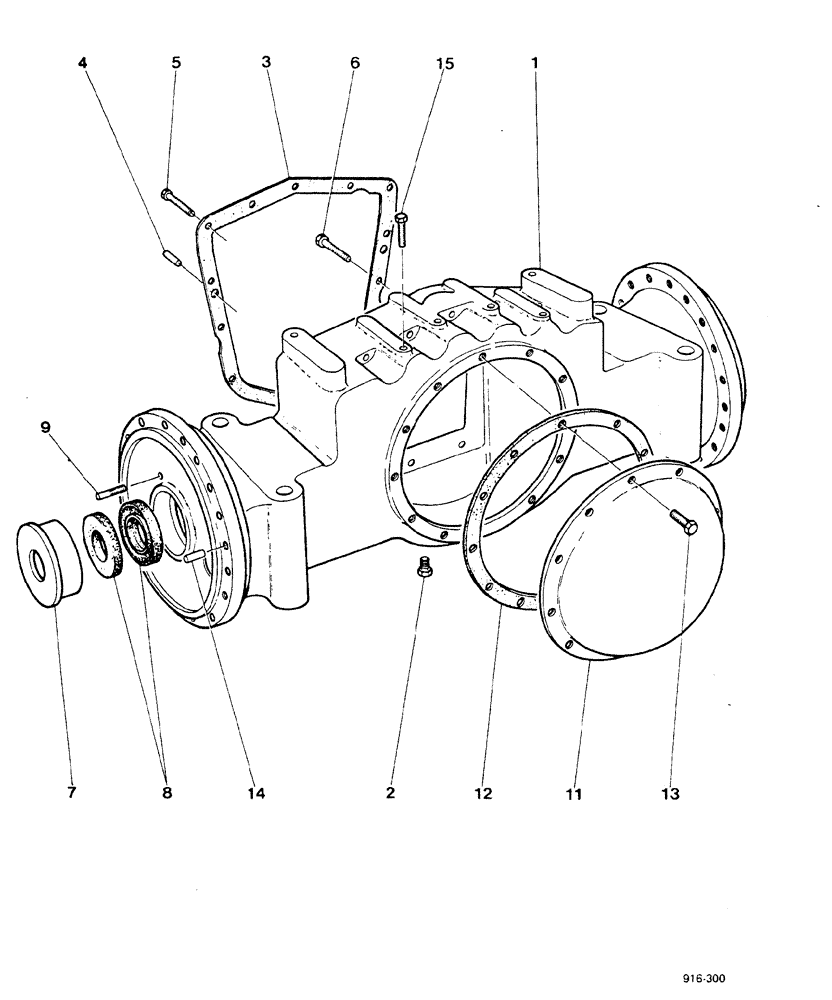

Запчасти Case 580F (066) - REAR AXLE CASE (27) - REAR AXLE SYSTEM

1

K955077

SHAFT

CASE, rear axle

1шт.

2

K623826

PLUG

flanged

1шт.

K626315

WASHER

special

1шт.

3

K948762

GASKET

1шт.

4

K621826

PIN

dowel

2шт.

5

13-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

5шт.

6

13-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

9шт.

92-7

LOCK WASHER,7/16"

14шт.

7

K62356

HOUSING

oil seal

2шт.

8

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

oil

4шт.

9

K947891

BREATHER

2шт.

11

K15222

COVER

SPARE PART

1шт.

12

K15228

GASKET

1шт.

13

K603001

HARDWARE

SETSCREW

12шт.

92-7

LOCK WASHER,7/16"

12шт.

14

K900105

PIN

dowel

4шт.

15

K603148

SCREW

BREATHER BOLT

1шт.
