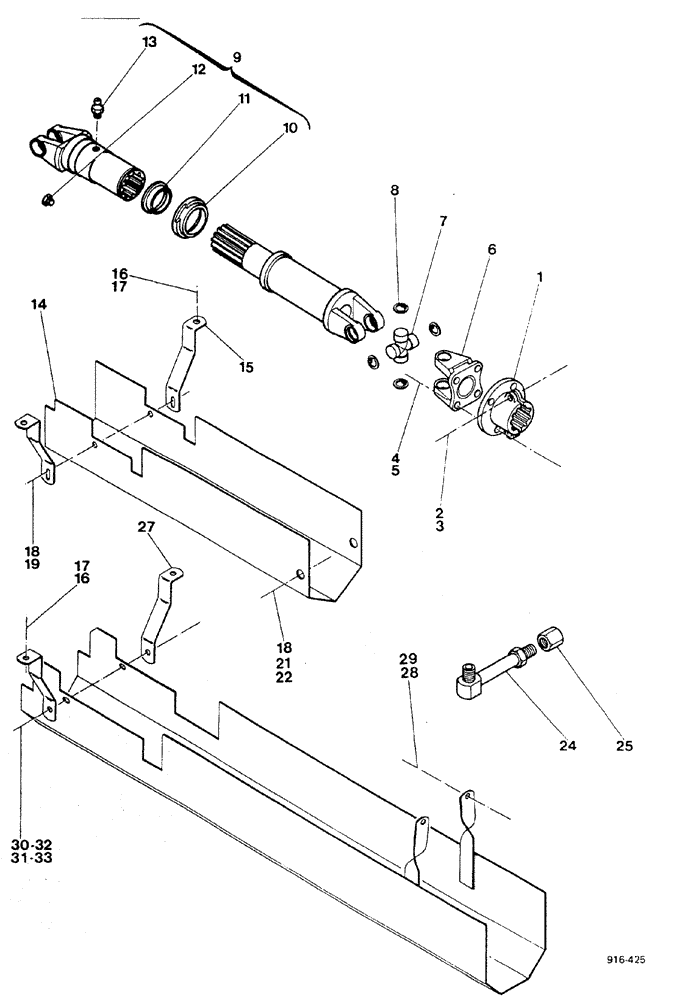

Запчасти Case 580F (104) - UNIVERSAL DRIVE (23) - FOUR WHEEL DRIVE SYSTEM

1

K956954

SPLINED COUPLING

2шт.

2

K965415

BOLT,M10 x 1.25 x 60mm

4шт.

3

K965414

NUT

4шт.

4

K956955

SCREW

8шт.

5

905834R1

THIN NUT,M12 x 1.25, Thin

8шт.

K956947

SHAFT

UNIVERSAL DRIVE, Includes: Ref. 6-13

1шт.

6

K956950

YOKE

SPARE PART

2шт.

7

K956872

U-JOINT SPIDER

BEARING

2шт.

8

K956873

RING

Snap

8шт.

9

K957008

SHAFT

UNIVERSAL DRIVE ASSY., Includes: Ref. 10-13

1шт.

10

K956953

COVER

dust

1шт.

11

K957009

SEALING RING

retaining

1шт.

12

K957010

CYLINDER END CAP

1шт.

13

K957007

FITTING

grease

1шт.

14

K956984

GUARD

order E42248, 13-716 (2), 92-7 (2), up to No. 3.741.269

1шт.

15

K956959

BRACKET

SPARE PART order E42249, up to No. 3.741.269

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Up to No. 3.741.269

4шт.

19

892-1108

LOCK WASHER,M8

Up to No. 3.741.269

2шт.

21

892-1108

LOCK WASHER,M8

2шт.

22

K965421

WASHER

up to No. 3.741.269

2шт.

24

K957002

DRAIN PLUG, up to No. 3.739.791

1шт.

25

218-755

CAP,37 Degree, 3/4"-16

PLUG, up to No. 3.739.791

1шт.

26

E42248

GUARD

starting with No. 3.741.270

1шт.

27

E42249

BRACKET

starting with No. 3.741.270

2шт.

28

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

Starting with No. 3.741.270

2шт.

29

92-7

LOCK WASHER,7/16"

Starting with No. 3.741.270

2шт.

30

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Starting with No. 3.741.270

2шт.

31

95-6

WASHER,3/8"

Starting with No. 3.741.270

2шт.

32

92-6

LOCK WASHER,3/8"

starting with No. 3.741.270

2шт.

33

25-106

NUT,3/8"-16, G5

starting with No. 3.741.270

2шт.
