(098) - REDUCTION

Запчасти Case 580F (098) - REDUCTION (23) - FOUR WHEEL DRIVE SYSTEM

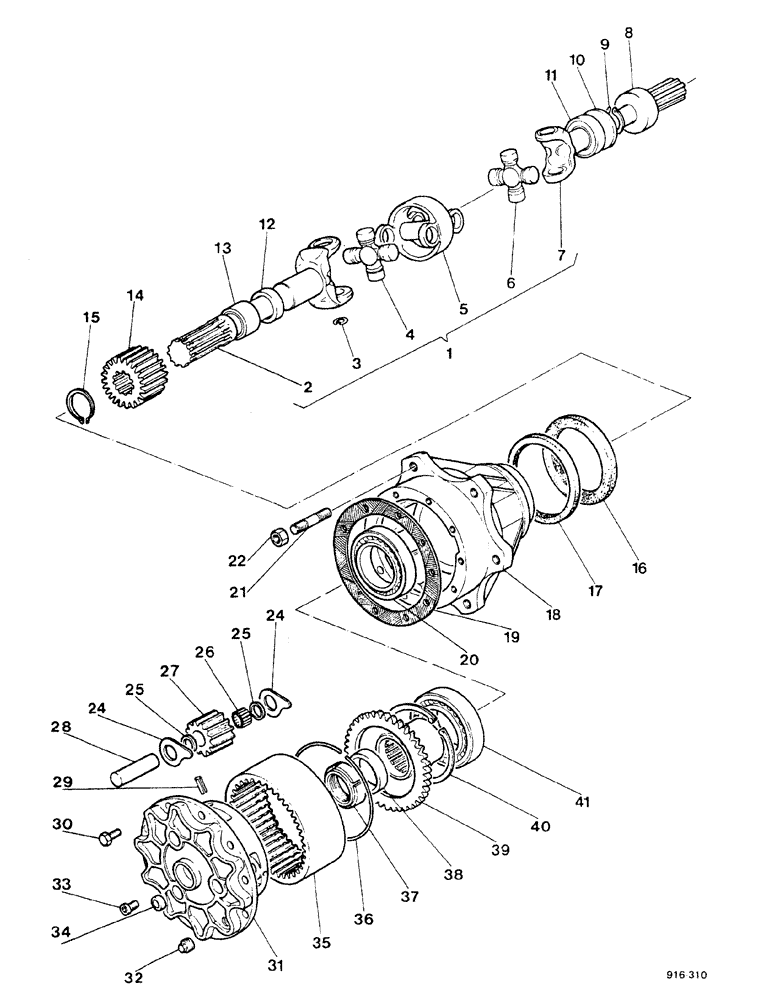

Схема запчастей Case 580F - (098) - REDUCTION (23) - FOUR WHEEL DRIVE SYSTEM
30
37
9
1
33
17
21
2
25
12
26
28
36
27
34
7
31
40
5
18
10
15
25
8
29
24
13
19
22
4
39
14
32
16
41
38
20
6
3
35
11
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K956868

SHAFT

ASSY., drive, Includes: Ref. 2-7

2шт.

2

K956870

FORK

HALF SHAFT, outer

1шт.

3

K956873

RING

snap

8шт.

4

K956872

U-JOINT SPIDER

and BEARING

1шт.

5

K956871

FLEXIBLE JOINT

CENTER BODY

1шт.

6

K956872

U-JOINT SPIDER

and BEARING

1шт.

7

K956869

SHAFT HOUSING

HALF, inner

1шт.

8

K965335

OIL SEAL,40mm ID x 72mm OD x 10mm Thk

oil

2шт.

9

K965334

SNAP RING,M40, Ext

2шт.

10

K965337

SEAL

COVER dust

2шт.

11

K965333

BALL BEARING,40mm ID x 80mm OD x 23mm W

ball

2шт.

12

K956891

OIL SEAL

oil

2шт.

13

K956890

BUSHING

2шт.

14

K956915

GEAR WHEEL

15 teeth

2шт.

15

K956916

CLIP

snap

2шт.

16

K956894

SEAL

oil

2шт.

17

K956895

SEAL

oil

2шт.

18

K956995

HUB

WHEEL

2шт.

19

K956925

SEAL

GASKET

2шт.

20

K956897

BEARING

2шт.

21

K956902

STUD

12шт.

22

K956903

NUT

12шт.

24

K956921

WASHER

12шт.

25

K956920

WASHER

12шт.

26

K956919

NEEDLE

180шт.

27

K956918

GEAR WHEEL

18 teeth

6шт.

28

K956917

AXLE PIN

6шт.

29

K956922

SPLIT PIN/SAFETY PIN

spring

6шт.

30

813-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

20шт.

892-1012

LOCK WASHER,M12

20шт.

31

K956996

COVER

HUB

2шт.

32

K965263

PLUG

2шт.

33

K965299

SCREW

2шт.

K965300

WASHER

SEAL

2шт.

34

K956924

PLUG

2шт.

35

K956914

GEAR WHEEL

internal

2шт.

36

K956907

RING

4шт.

37

K956913

LOCK NUT

2шт.

38

K956908

SPACER

2шт.

K956909

SHIM,0.5mm Thk

1шт.

K956910

SHIM,0.3mm Thk

1шт.

K956911

SHIM,0.1mm Thk

1шт.

K956912

WASHER

2шт.

39

K956905

GEAR WHEEL

2шт.

40

K956900

RING

snap, if used

2шт.

41

K956906

BEARING

2шт.
