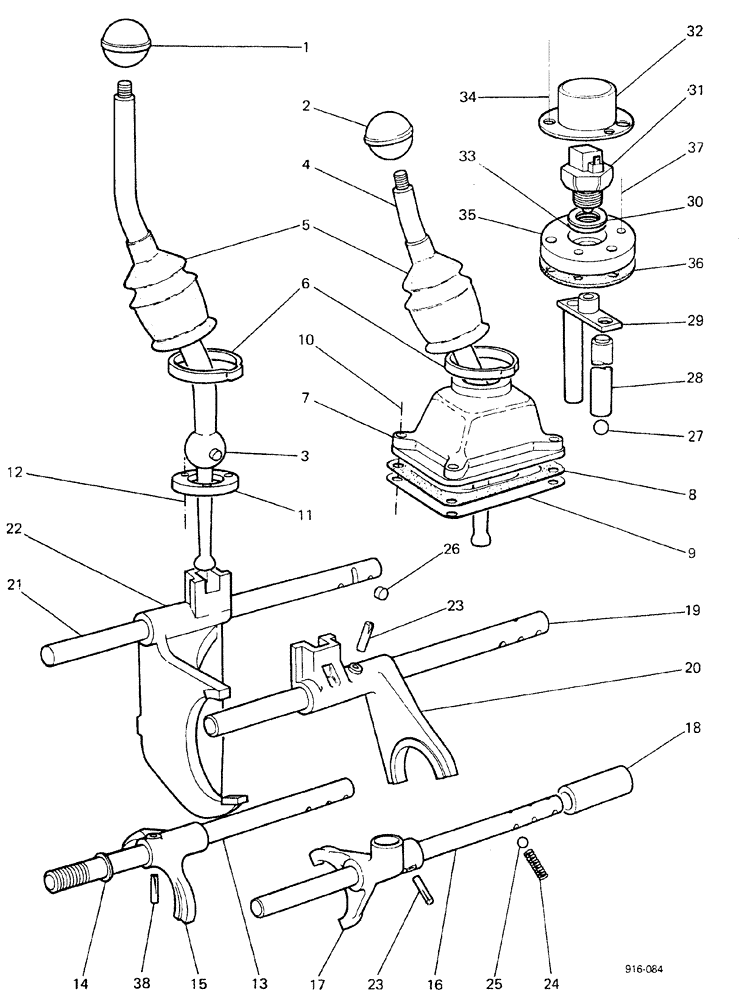

Запчасти Case 580F (074) - GEAR SELECTOR MECHANISM (21) - TRANSMISSION

1

K951313

KNOB

gear lever

1шт.

2

K951321

KNOB

SPARE PART range lever

1шт.

3

K203369

SELECTOR

SPARE PART LEVER gear

1шт.

4

K203371

SELECTOR

LEVER

1шт.

5

K929631

BOOT

COVER dust

2шт.

6

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

7

K929629

BALL

HOUSING

2шт.

8

K950543

GASKET,0.2mm Thk

4шт.

9

K952626

BAFFLE

oil

2шт.

10

13-418

BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5

Set

8шт.

92-4

LOCK WASHER,1/4"

8шт.

11

K903074

SUPPORT

plate

2шт.

12

K603630

SCREW

set

6шт.

K904386

WASHER

tab

2шт.

13

K948960

ROD

ROD, DC

1шт.

14

K623407

OIL SEAL

oil, DC

2шт.

15

K946966

FORK

SELECTOR, DC

1шт.

16

K948961

SELECTOR

ROD

1шт.

17

K929628

SELECTOR

FORK

1шт.

18

K948965

SLEEVE

SLEEVE

1шт.

19

K948962

LARGE PIN

PIN, LARGE SELECTOR ROD

1шт.

20

K948920

SELECTOR

FORK

1шт.

21

K948963

ROD

ROD

1шт.

22

K948964

SELECTOR

FORK

1шт.

23

K623748

PIN

3/16 x 1-1/8

3шт.

24

K13507

SPRING

DC

4шт.

25

211-210

BALL,3/8" Dia

steel, DC

4шт.

24

K13507

SPRING

TC

3шт.

25

211-210

BALL,3/8" Dia

TC

3шт.

26

K30430

LOCKING DEVICE

gear

1шт.

27

211-210

BALL,3/8" Dia

steel, DC

2шт.

28

K945208

PLUNGER

DC

1шт.

29

K945204

PLUNGER

complete, DC

1шт.

30

K626895

SHIM,.002" Thk

DC

1шт.

K626858

SHIM,.005" Thk

DC

1шт.

K626894

SHIM,.010" Thk

DC

1шт.

31

K200652

NEUTRAL START SWITCH

starter, DC

1шт.

32

K940284

COVER

safety switch, DC

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

32

K951059

COVER

TC

1шт.

33

K15535

O-RING,1.484" ID x 1.762" OD x 0.139"

0, DC

1шт.

34

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

3шт.

35

K948789

BLOCK

BLOCK, DC

1шт.

36

K948790

GASKET

1шт.

37

K606804

SCREW

DC

3шт.

38

K623776

GROOVED PIN,1/4" x 1 1/8", Type A

DC 1/4" x 1 1/8", Type A

1шт.
