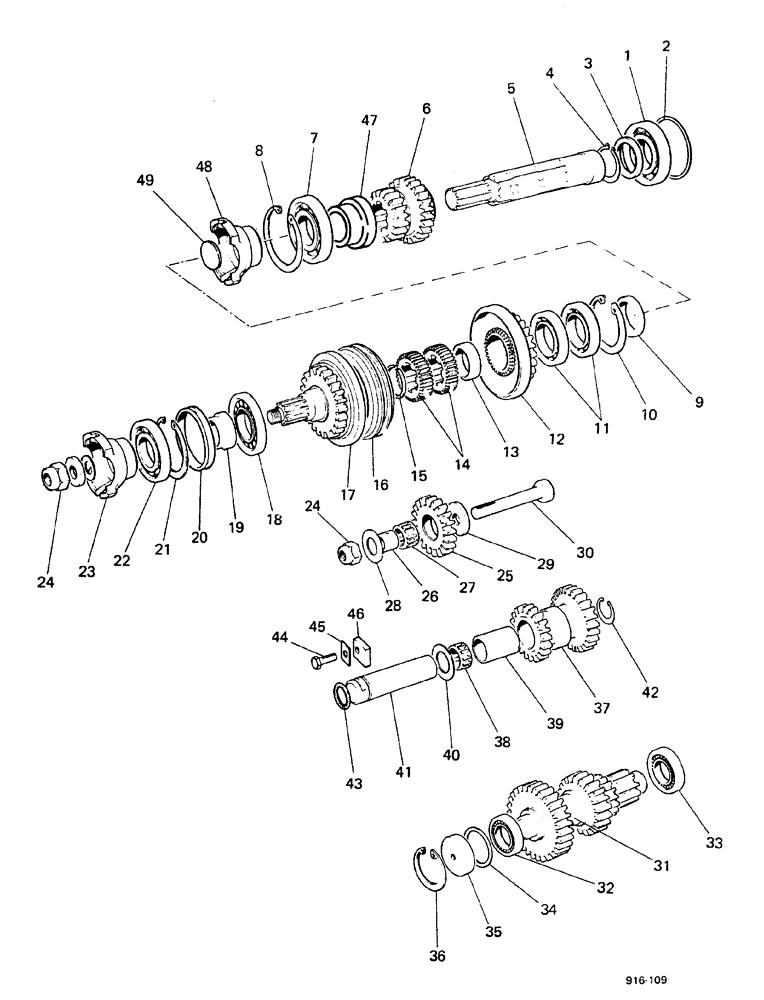

Запчасти Case 580F (070) - DRIVESHAFT AND LAYSHAFT (21) - TRANSMISSION

1

K19047

BALL BEARING

BEARING

1шт.

2

K908372

SHIM,.003" Thk

1шт.

K908373

SHIM,.005" Thk

1шт.

K908374

SHIM,.020" Thk

1шт.

3a

K940671

WASHER

SPACER, DC

2шт.

4a

K12922

RING, SNAP

RING SNAP DC

3шт.

5a

K948618

DRIVE SHAFT

up to No,___, DC

1шт.

5a

K957306

SHAFT

Drive, starting with No.___, DC

1шт.

3b

K940671

WASHER

SPACER, TC

1шт.

4b

K12922

RING, SNAP

RING SNAP TC

1шт.

5b

K950644

SHAFT

up to No. 11.243.142, TC

1шт.

5b

K957305

DRIVE SHAFT

starting with No. 11.243.143, TC

1шт.

6

K948769

GEAR

pinion, up to No.___for DC and up to No. 11.243.142 for TC

1шт.

order K950207 and K957306 for DC, order K950207 and K957305 for TC

1шт.

6

K950207

GEAR

pinion, starting with No.___ for DC and starting with No. 11.243.143 for TC

1шт.

7

K19081

BALL BEARING

ball

1шт.

8

K16296

RING

snap

1шт.

9

K946539

BUSHING

SPARE PART DC

1шт.

10

K17023

CIRCLIP

snap, DC

1шт.

11

K19135

BEARING, BALL

DC

2шт.

12

K964538

ENGINE ASSEMBLY

ENGINE ASSY GEAR, DC

1шт.

13

K946540

BUSHING

DC

1шт.

14

K928226

GEAR

fixed, dog clutch, DC

2шт.

15

K621896

RING, SNAP

RING SNAP DC

1шт.

16

K928223

GEAR

SLIDING AND CONE ASSY., DC, Includes Spring

1шт.

K926266

SPRING

DC

6шт.

17

K948574

GEAR

driving, DC

1шт.

18

K12275

BEARING, ROLLER, CYL

DC

1шт.

19

K948768

BUSHING

DC

1шт.

20

K627303

BUSHING

DC

1шт.

21

K11481

RING, SNAP

RING SNAP DC

2шт.

22

K19047

BALL BEARING

BEARING, DC

1шт.

23

D70106

YOKE

DC

1шт.

24

K617307

LOCK NUT

DC

1шт.

K626758

WASHER

DC

1шт.

K626459

SEALING WASHER

WASHER sealing, DC

1шт.

25

K946530

GEAR

idler, DC

1шт.

26

K946532

BUSHING

idler, DC

1шт.

27

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

needle roller

1шт.

28

K912793

WASHER

thrust, DC

2шт.

29

K946533

WASHER

SPARE PART DC

1шт.

30

K200766

BOLT

DC

1шт.

131-64

LOCK NUT,5/8"-11, GC

DC

1шт.

31

K948575

SHAFT

LAY, GEARBOX

1шт.

32

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

taper

1шт.

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

1шт.

33

D48896

BEARING

taper roller

1шт.

D59595

TAPERED BEARING

1шт.

34

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

1шт.

K914703

SHIM,.003" Thk

1шт.

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

1шт.

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

1шт.

35

K948802

BUSHING

1шт.

36

K621483

RING, SNAP

RING SNAP

1шт.

37

K950036

GEAR

LAY, reverse, DC

1шт.

38

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

roller, DC

2шт.

39

K946537

BUSHING

DC

1шт.

40

K626714

WASHER

thrust, DC

2шт.

41

K950035

PIN

BEARING SHAFT, DC

1шт.

42

K621765

RING, SNAP

RING SNAP DC

1шт.

43

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

DC

1шт.

44

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

set, DC

1шт.

45

K626423

WASHER

tab, DC

1шт.

46

K928456

PLATE

locking, DC

1шт.

47

K948657

BUSHING

TC

1шт.

48

D70107

YOKE

UNIVERSAL JOINT YOKE AND CORE PLUG, TC, Includes: Ref. 49

1шт.

49

41-24

PLUG

1шт.
