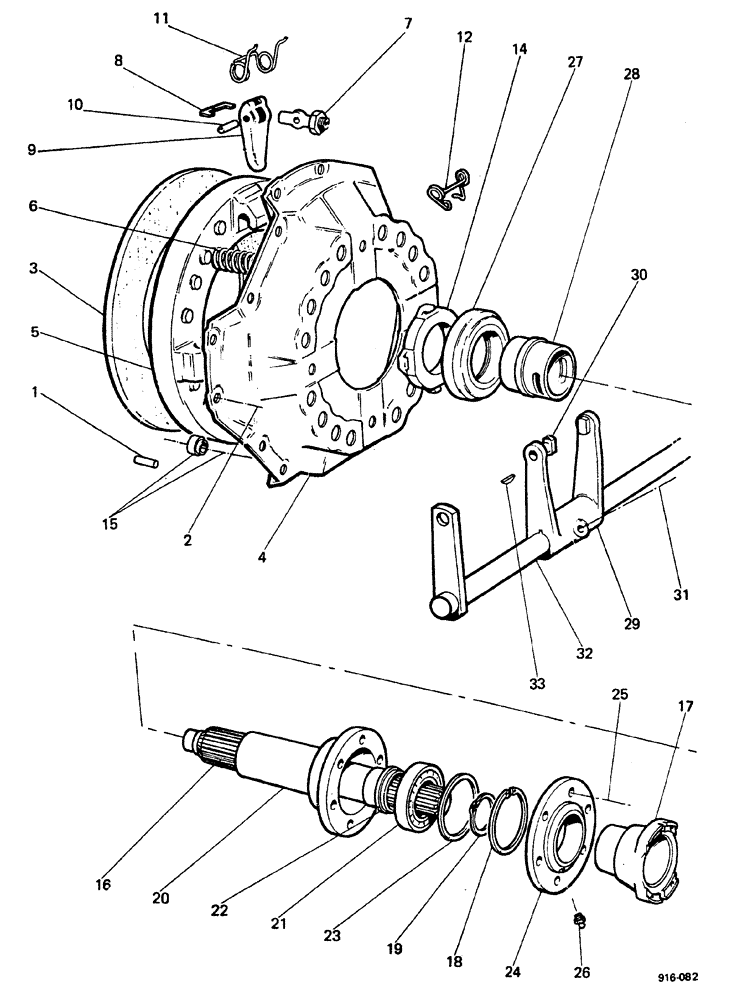

Запчасти Case 580F (064) - CLUTCH (21) - TRANSMISSION

1

K621838

PIN

dowel, 5/16"

2шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

set

8шт.

192-21

LOCK WASHER,3/8"

8шт.

3

K956770

PLATE

driven, Includes Facing

1шт.

K962531

FACING

1шт.

K956244

CLUTCH

COVER ASSY. Includes: Ref. 4-15

1шт.

4

K965198

COVER

1шт.

5

K962529

PLATE

pressure

1шт.

6

K964745

SPRING

thrust

16шт.

7

K964525

NUT

AND EYEBOLT

4шт.

K962553

NUT

4шт.

8

K14003

STOP

4шт.

9

K964582

LEVER

4шт.

10

K14005

AXLE PIN

4шт.

11

K900243

SPRING

4шт.

12

K14079

SPRING

retainer

4шт.

14

K964581

PLATE

1шт.

15

K962527

KIT

FERRULE AND BOLT

1шт.

K964743

SPACER

4шт.

16

K950645

SHAFT

clutch drive

1шт.

17

D70107

YOKE

UNIVERSAL JOINT YOKE Includes Plug

1шт.

41-24

PLUG

1шт.

18

K621430

CIRCLIP

snap

1шт.

19

K14337

CIRCLIP

snap

1шт.

20

K948647

SUPPORT

1шт.

21

K620190

BALL BEARING

BEARING

1шт.

22

K948846

COLLAR

SPARE PART BUSH

2шт.

23

K948649

RING

outer

1шт.

24

K950753

COVER

dust

1шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

27

K620112

ROLLER

BEARING

1шт.

28

K948653

CARRIER

BEARING

1шт.

29

K915831

TRANSMISSION

CLUTCH FORK

1шт.

30

K948654

TRUNNION

SPARE PART PIN

2шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

25-106

NUT,3/8"-16, G5

1шт.

192-21

LOCK WASHER,3/8"

1шт.

32

K952632

SHAFT

AND LEVER

1шт.

33

126-22

WOODRUFF KEY,#13, 3/16" x 1"

2шт.
