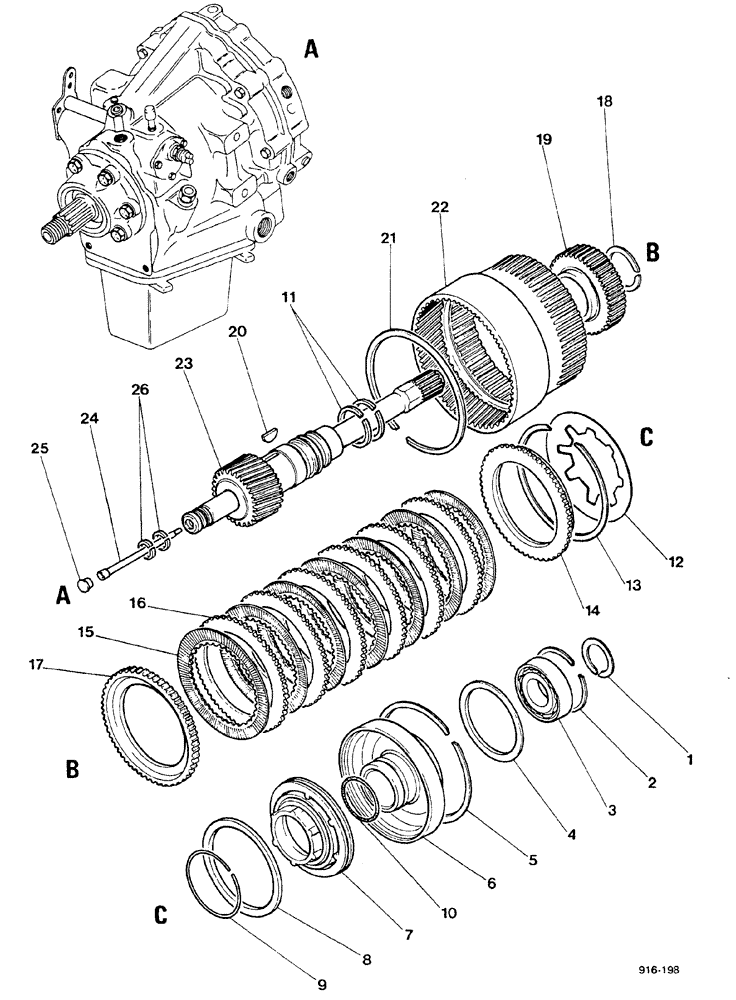

Запчасти Case 580F (060) - TRANSMISSION, POWER SHUTTLE, GEAR AND CLUTCH (21) - TRANSMISSION

REF

INSTRUCTION

SHUTTLE complete, Includes: Ref. 1-26, see Figures, Serial Range: 054-062

1шт.

1

D50042

RING

snap

1шт.

2

D50043

RING

snap

1шт.

3

D50044

BALL BEARING

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

1шт.

5

D50046

RING

snap

1шт.

6

D50075

CYLINDER

1шт.

7

D70670

PISTON

1шт.

8

D50077

RING

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

2шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

1шт.

13

D50048

CIRCLIP

retaining

1шт.

D50024

CLUTCH

KIT Includes: Ref. 14, 15, 16 and 17

1шт.

14

D50081

PLATE,139.12mm OD

pressure

1шт.

15

D70672

PLATE

clutch

7шт.

16

D50083

PLATE

clutch

6шт.

17

D50084

PLATE,139.45mm OD

pressure

1шт.

18

D50049

RING

snap

1шт.

19

D50050

HUB

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

21

CASD50051

RING

RING snap, Serial Range: .050"-.054"

1шт.

21

D78397

RING

snap, Serial Range: .062"-.066"

1шт.

21

D50052

RING

snap, Serial Range: .074"-.078"

1шт.

21

D78398

RING

snap, Serial Range: .084"-.088"

1шт.

21

D50053

RING

snap, Serial Range: .096"-.100"

1шт.

22

D50054

GEAR

RING

1шт.

D70666

GEAR

AND SHAFT complete, Includes: Ref. 23, 24 and 25

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT

1шт.

24

D70667

TUBE,0.3155" DIA x 5.26" L

1шт.

25

D50086

PLUG

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

2шт.
