(420) - COLD START, TIMING RETARD ON INJECTION PUMP, STARTING WITH NO 3.741.224

Запчасти Case 580F (420) - COLD START, TIMING RETARD ON INJECTION PUMP, STARTING WITH NO 3.741.224 (10) - ENGINE

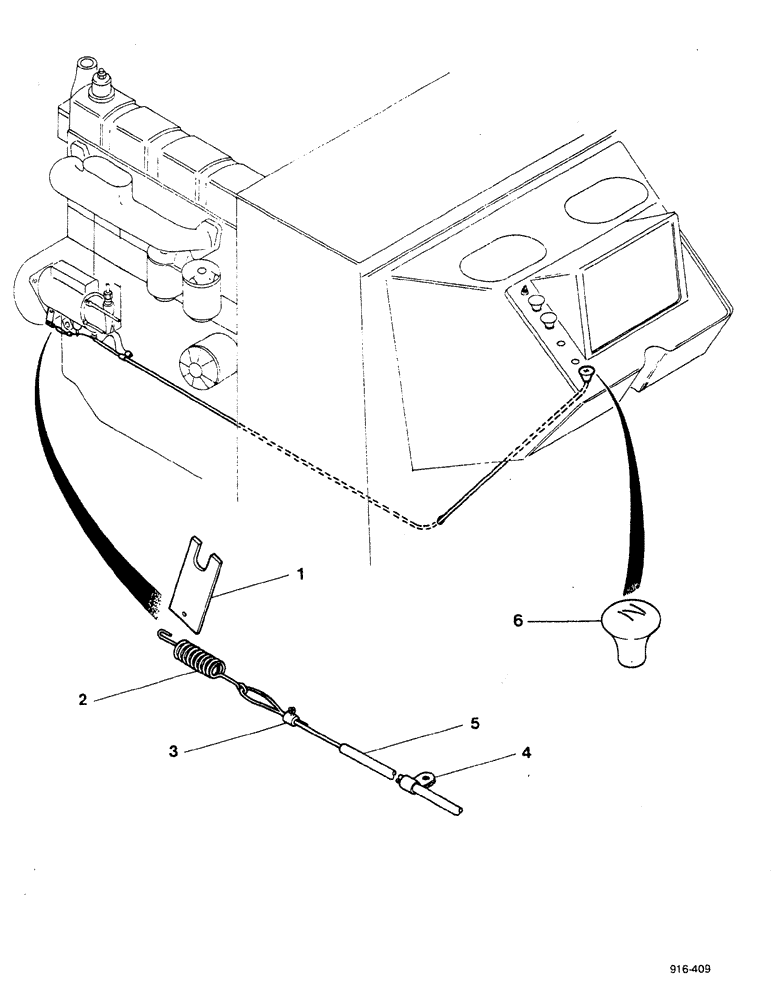

Схема запчастей Case 580F - (420) - COLD START, TIMING RETARD ON INJECTION PUMP, STARTING WITH NO 3.741.224 (10) - ENGINE
5
2
4
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E41920

STRAP

SPARE PART holding

1шт.

2

K624938

SPRING

1шт.

3

E41921

CABLE TIE

CABLE STRAP CLAMP

1шт.

4

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

5

E41730

CABLE

Includes: Ref. 6

1шт.

6

E42818

KNOB

1шт.
