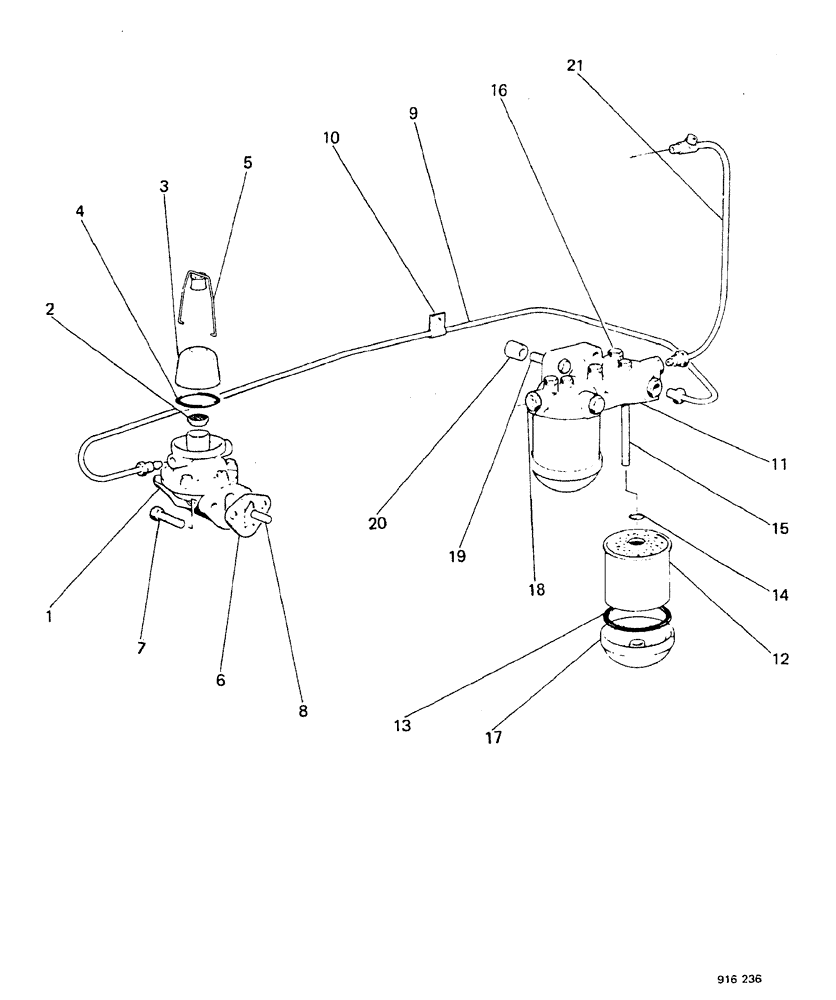

Запчасти Case 580F (026) - ENGINE, FUEL FEED PUMP, FILTERS AND PIPES (10) - ENGINE

1

K944997

PUMP

fuel feed, Includes: Ref. 2-5

1шт.

2

K961675

FILTER SCREEN

1шт.

3

K66442

FILTER BOWL

1шт.

4

K96I674

GASKET

1шт.

5

K961676

BAIL

SCREW and BRACKET

1шт.

K911917

DIAPHRAGM

1шт.

6

K902136

GASKET

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

K14988

WASHER

2шт.

K19471

WASHER

2шт.

8

K911928

PUSH ROD,9.51mm OD x 35.99mm L

push

1шт.

9

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

fuel

1шт.

10

K621603

CLIP

1шт.

11

K906708

FILTER

fuel, Ref.5845B010, Includes: Ref. 12-17

1шт.

12

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

Includes: Ref. 13 and 14

2шт.

13

K965801

RING

sealing, lower

1шт.

13

K965802

RING

sealing, upper

1шт.

14

K960937

O-RING

1шт.

15

113-187

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

2шт.

15

K963409

RING

sealing

2шт.

16

K965010

PLUG

vent

1шт.

16

K14734

WASHER

1шт.

17

K962264

COVER

BASE

2шт.

11

K963878

FILTER

fuel, Ref. APF 62900

1шт.

12

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

Includes: Ref. 13 and 14

2шт.

13

K965801

RING

sealing, lower

1шт.

13

K965802

RING

sealing, upper

1шт.

14

E36622

RING

O

1шт.

15

K964805

BOLT (SPREADER)

2шт.

15

K963895

WASHER

2шт.

16

K963811

PLUG

vent

3шт.

16

K963853

WASHER

3шт.

17

K964152

BASE

2шт.

18

3070775R1

ADAPTER

ADAPTER

3шт.

19

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

2шт.

20

K627042

BUSHING

2шт.

21

K945417

PIPE

fuel

1шт.
