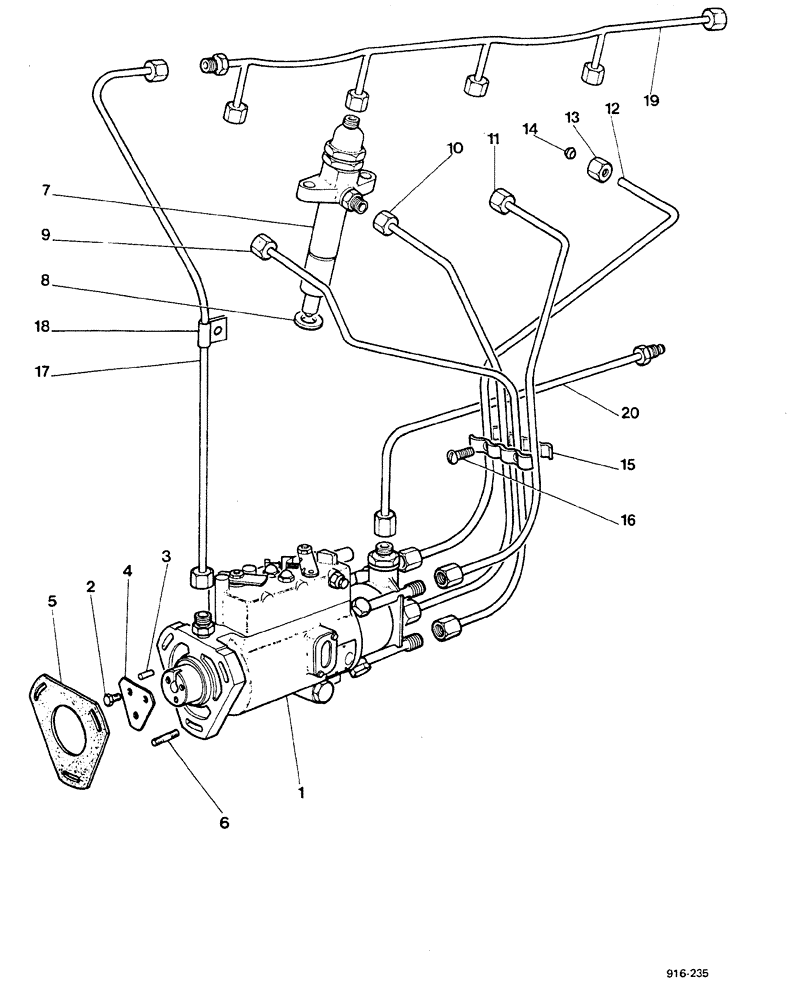

Запчасти Case 580F (024) - ENGINE, INJECTION PUMP, INJECTORS AND PIPES (10) - ENGINE

1

K956420

PUMP, FUEL INJECTION

PUMP, INJECTION Ref. 3342F 540

1шт.

1

K957314

PUMP, FUEL INJECTION

SPARE PART Ref. 3342F 920, starting with No. 3.741.224

1шт.

2

K612804

SCREW

set

3шт.

3

K14577

DOWEL

1шт.

4

K914503

LARGE PLATE

PLATE, LARGE TABWASHER

1шт.

5

K68349

GASKET

1шт.

6

K608135

STUD

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

#10

3шт.

K19471

WASHER

3шт.

7

K954826

INJECTOR ASSY.

Includes: Ref. 8

4шт.

K954827

NOZZLE INJECTION

HOLDER

1шт.

K942176

NOZZLE CAP

1шт.

8

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

1шт.

K620460

ADAPTER

4шт.

K36374

WASHER

4шт.

9

K918915

PIPE

fuel, No. 1

1шт.

10

K918916

PIPE

fuel, No. 2

1шт.

11

K954828

PIPE,18.281" L

fuel, No. 3

1шт.

12

K954829

PIPE,20.75" L

fuel, No. 4, Includes: Ref. 13, 14

1шт.

13

K900845

NUT

NUT

8шт.

14

K947203

FERRULE

SLEEVE

8шт.

15

K900844

CLAMP

2шт.

16

K12217

SCREW,0.185" x 5/8"

2шт.

K11109

NUT

2шт.

92-3

LOCK WASHER,#10

2шт.

17

K907035

PIPE

leak off

1шт.

18

K621610

CLIP

1шт.

19

K904250

INJECTION PIPE

leak off

1шт.

20

K918923

PIPE

fuel

1шт.
