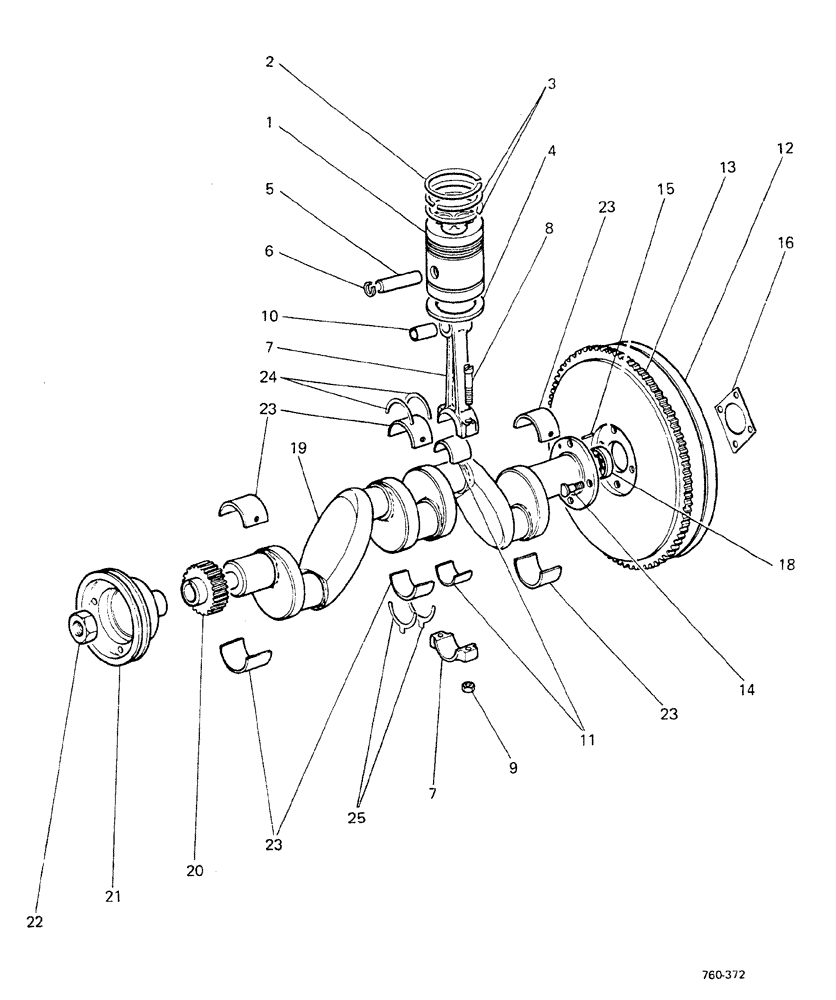

Запчасти Case 580F (016) - ENGINE, PISTONS AND CRANKSHAFT (10) - ENGINE

1

K949474

PISTON & RINGS KIT

and GUDGEON PIN, complete, Includes: Ref. 2-6

4шт.

2

K943881

RING, PISTON

No. 1

1шт.

3

K943882

RING, PISTON

No. 2 and 3

2шт.

4

K917409

SCRAPER

piston ring

1шт.

5

K904370

PIN

GUDGEON

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

1

K949719

PISTON

and GUDGEON PIN, complete, + .20", Includes: Ref. 2-6

4шт.

2

K943885

RING, PISTON

No. 1

1шт.

3

K943886

RING, PISTON

No. 2 and 3

2шт.

4

K917412

PISTON

SCRAPER, ring

1шт.

5

K904370

PIN

GUDGEON

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

1

K949720

PISTON

and GUDGEON PIN, complete, + .40", Includes: Ref. 2-6

4шт.

2

K943888

RING, PISTON

No. 1

1шт.

3

K943889

RING, PISTON

No. 2 and 3

2шт.

4

K917415

PISTON

SCRAPER, ring

1шт.

5

K904370

PIN

GUDGEON

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

7

K80043

ROD, CONNECTING

complete, Includes: Ref. 8, 9 and 10

4шт.

8

K905198

BOLT

2шт.

9

K623151

LOCK NUT

2шт.

10

K31669

BEARING

1шт.

11

K911904

HALF-BEARING, CRANKS

8шт.

Part of P/N K962157

1шт.

12

K948644

FLYWHEEL

and STARTER RING, complete, DC

1шт.

12

K948608

FLYWHEEL

and STARTER RING, complete, TC, Includes: Ref. 13

1шт.

13

K946819

GEAR

STARTER RING

1шт.

14

K903431

STEP BOLT

4шт.

15

K10629

PIN

dowel

1шт.

16

K910883

WASHER

Tab, DC

1шт.

16

K946238

WASHER

Tab, TC

1шт.

25-117

NUT,7/16"-20, G5

4шт.

18

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

Ball, DC

1шт.

19

K962157

CRANKSHAFT

with bearings, Includes: Ref. 11, 23, 24 and 25

1шт.

20

K945094

GEAR

34 teeth

1шт.

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(No. 606)

1шт.

21

K944348

PULLEY

1шт.

22

K623300

NUT

special

1шт.

K626403

WASHER

special

1шт.

23

K928541

HALF-BEARING, CRANKS

main

6шт.

Part of P/N K962157

1шт.

24

K928542

SET

WASHER thrust

2шт.

Part of P/N K962157

1шт.

K928560

THRUST WASHER

WASHER thrust, + .005"

2шт.

K928562

WASHER, THRUST

+ .020"

2шт.

25

K928543

SET

WASHER thrust

2шт.

Part of P/N K962157

1шт.

K928561

WASHER

thrust, + .005"

2шт.

K928563

RING

thrust, + .020"

2шт.

K962158

CRANKSHAFT BEARING

LINER KIT

1шт.

K928541

HALF-BEARING, CRANKS

crankshaft

6шт.

K911904

HALF-BEARING, CRANKS

LINER ROD

8шт.

K962163

BEARING

LINER KIT, - .010"

1шт.

K928554

BEARING SET

crankshaft

6шт.

K912638

HALF-BEARING, CRANKS

LINER ROD

8шт.

K962164

BEARING

LINER KIT, - .020"

1шт.

K928555

BEARING SET

crankshaft

6шт.

K912639

HALF-BEARING, CRANKS

LINER ROD

8шт.

K962165

BEARING

LINER KIT, - .030"

1шт.

K928556

BEARING SET

crankshaft

6шт.

K913941

HALF-BEARING, CRANKS

ROD

8шт.

K964731

RING

KIT oil control

4шт.

K943881

RING, PISTON

No. 1

1шт.

K943882

RING, PISTON

No. 2 and 3

2шт.

K917409

SCRAPER

piston ring

1шт.

K964730

RING

KIT oil control, + .020"

4шт.

K943885

RING, PISTON

No. 1

1шт.

K943886

RING, PISTON

No. 2 and 3

2шт.

K917412

PISTON

SCRAPER ring

1шт.

K964729

RING

KIT oil control, + .040"

4шт.

K943888

RING, PISTON

No. 1

1шт.

K943889

RING, PISTON

No. 2 and 3

2шт.

K917415

PISTON

SCRAPER ring

1шт.

K963484

ADHESIVE

LOCTITE

1шт.

K964584

OIL

MOLYBDENUM DISULPHIDE

1шт.

K964857

LINER, ENGINE CYLIND

liner

4шт.

used with standard pistons, not original equipment.

1шт.
