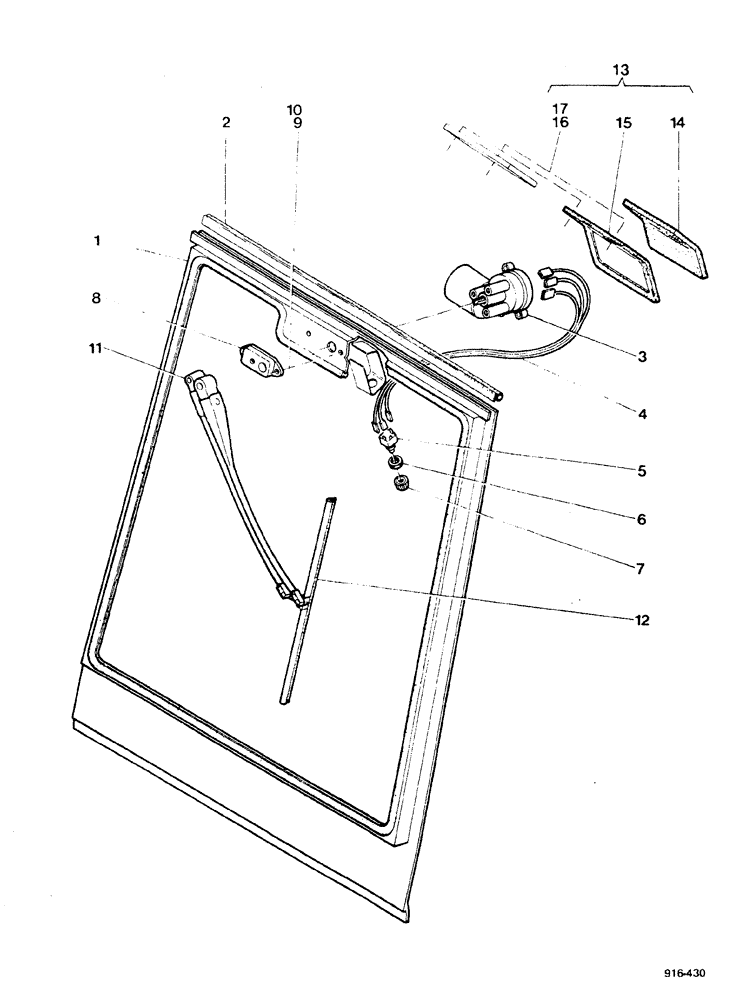

Запчасти Case 580F (350) - CAB, REAR WINDOW, SWEDEN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

E40538

FUNNEL

FRAME

1шт.

2

E40573

SEAL ASSY.

1шт.

3

REF

INSTRUCTION

MOTOR, see Figure 362

1шт.

4

E41946

HARNESS

WIRE

1шт.

5

A42660

SWITCH

1шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

7

A42578

KNOB

1шт.

8

L35753

ADAPTER

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

10

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

2шт.

11

L35260

ARM

1шт.

12

F42706

WINDSHIELD WIPER

1шт.

13

E41721

GUARD ASSY.

complete, Includes: Ref. 14 and 15

1шт.

14

E41723

FOAM

1шт.

15

E41078

GUARD

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

17

195-103

WASHER,5/16"

4шт.
