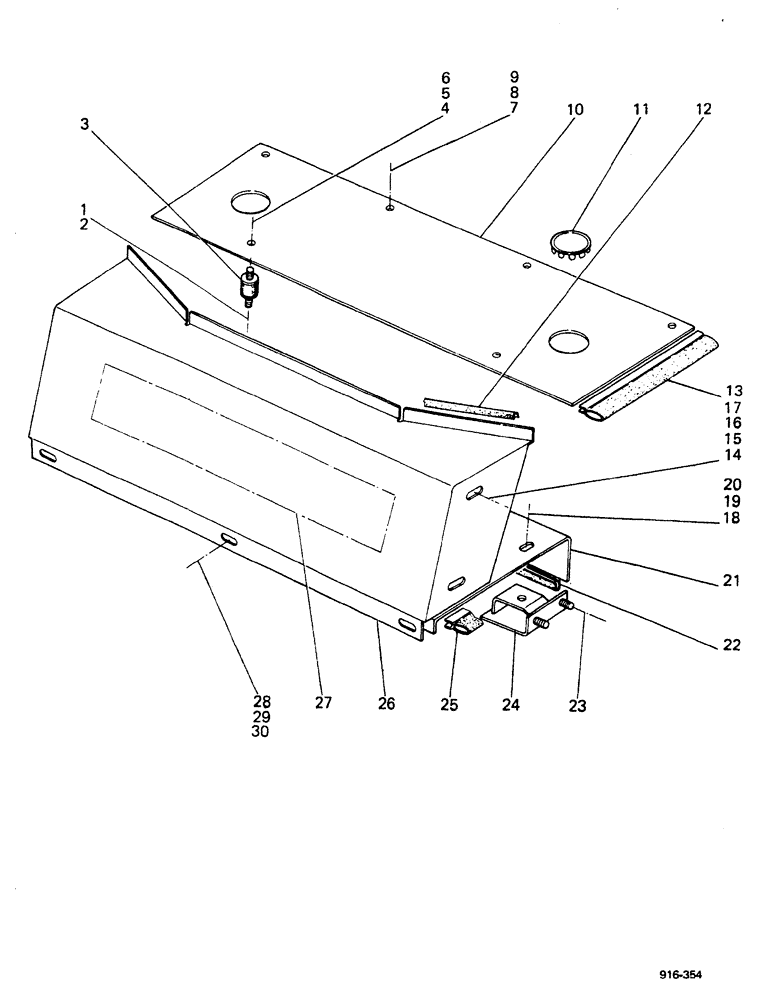

Запчасти Case 580F (338) - FLOOR PLATE AND REAR PANEL, LOADER ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

92-5

LOCK WASHER,5/16"

2шт.

2

825-1008

NUT,M8, Cl 8

2шт.

3

787044R1

DAMPER

MOUNT, rubber

2шт.

4

825-1008

NUT,M8, Cl 8

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

195-2020

WASHER,.344" x 1" x .065"

plain

2шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

8

92-5

LOCK WASHER,5/16"

4шт.

9

195-2020

WASHER,.344" x 1" x .065"

plain

4шт.

10

E38491

PLATE

rear, Includes: FOIL bitumen

1шт.

E38433

PLATE

FOIL bitumen

1шт.

11

205-72

HOLE PLUG BUTTON,3"

2шт.

12

E40871

GUARD, for without cab

1шт.

13

E38446

SEAL

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

195-525

WASHER,3/8", SAE

8шт.

16

192-21

LOCK WASHER,3/8"

4шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

18

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

195-2020

WASHER,.344" x 1" x .065"

plain

2шт.

21

E40793

PLATE

floor

1шт.

22

E41104

GUARD

2шт.

23

131-1117

LOCK NUT,5/16"-18, GA

4шт.

24

E40795

BRACKET

2шт.

25

E40814

GASKET

2шт.

26

E41599

PANEL

rear

1шт.

27

321-5066

DECAL

1шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

29

192-21

LOCK WASHER,3/8"

3шт.

30

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3шт.
