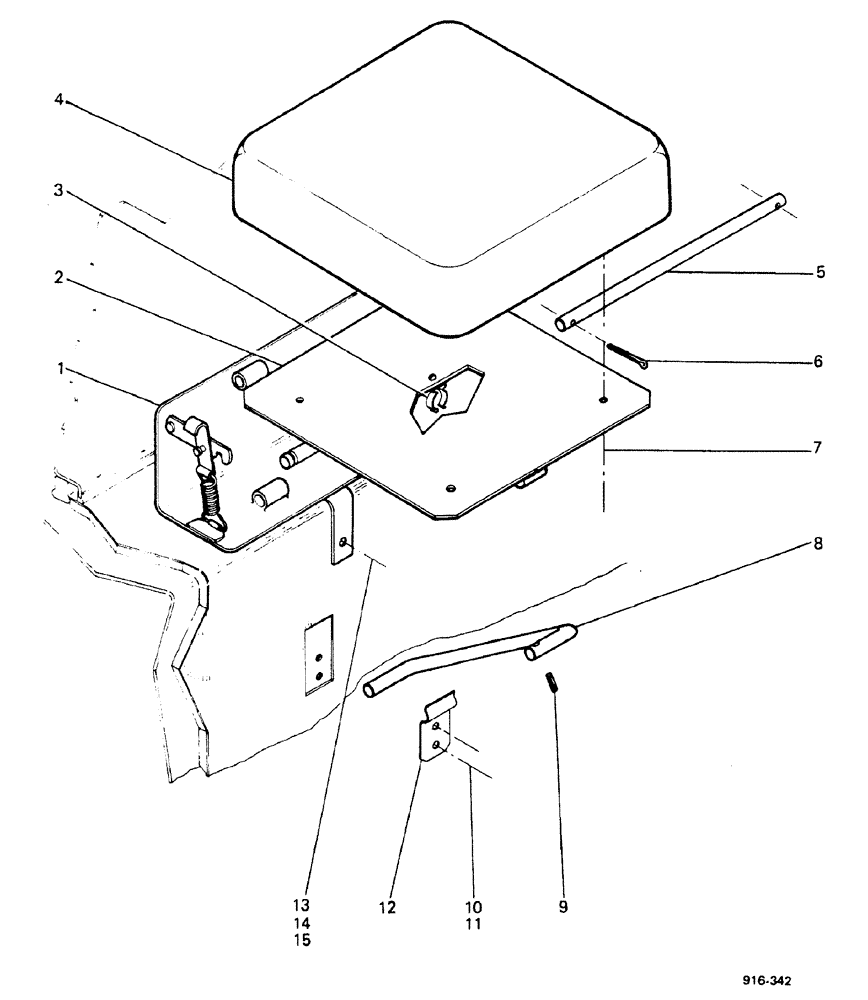

Запчасти Case 580F (332) - FLAP SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

E41098

SPARE PART

BRACKET

1шт.

2

E34629

PLATE ASSY.

BRACKET

1шт.

3

E30867

SPARE PART

FASTENER

1шт.

4

E30716

CUSHION ASSY.

SPARE PART

1шт.

5

E30745

AXLE PIN

1шт.

6

E15520

SPARE PART

PIN

2шт.

7

E30755

SCREW

4шт.

8

E30748

BRACKET

1шт.

9

138-54

LOCK PIN,1/8" x 9/16", Slotted

1шт.

10

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

12

E30791

LATCH ASSY.

FASTENER

1шт.

13

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

14

195-522

WASHER,5/16"

plain

3шт.

15

192-21

LOCK WASHER,3/8"

3шт.
