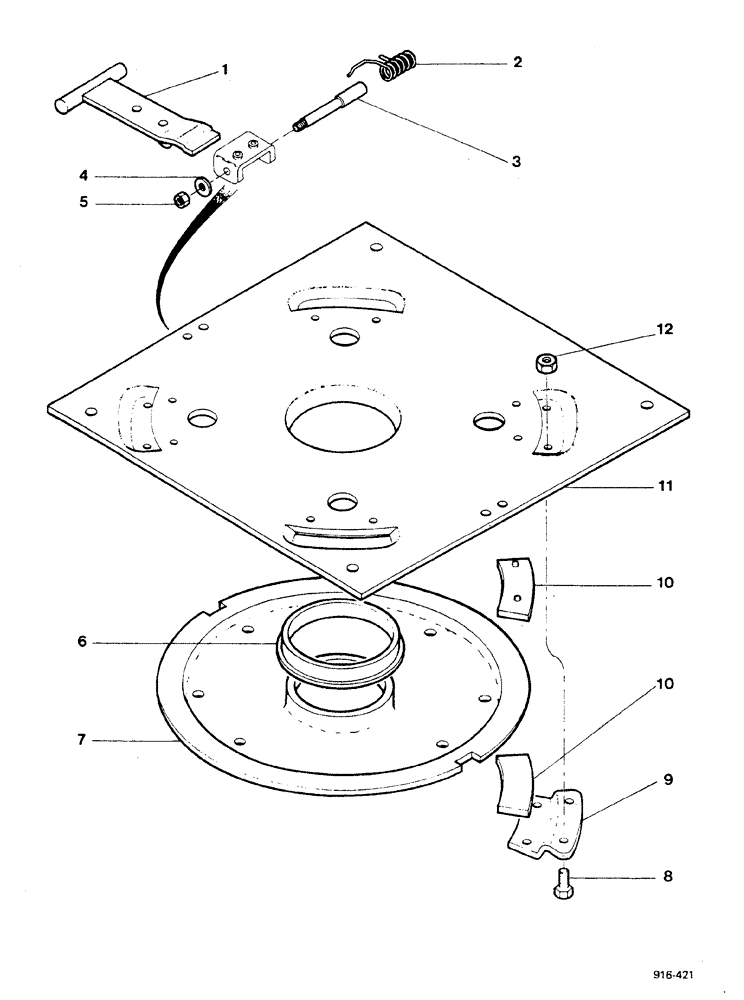

Запчасти Case 580F (331A) - SWIVEL PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

E41616

PLATE

ASSY., swivel, Includes: Ref. 1-12

1шт.

1

E42120

LEVER

1шт.

2

E42122

SPRING

1шт.

3

E42121

PIN

1шт.

4

E42449

WASHER

1шт.

5

825-1105

NUT,M5, Cl 8

1шт.

6

E42117

BUSHING

1шт.

7

E42116

DISC

1шт.

8

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

9

E42119

SUPPORT

4шт.

10

E42118

PAD

8шт.

11

E42115

PLATE ASSY.

swivel

1шт.

12

825-1106

NUT,Hex, M6, Cl 8

8шт.
