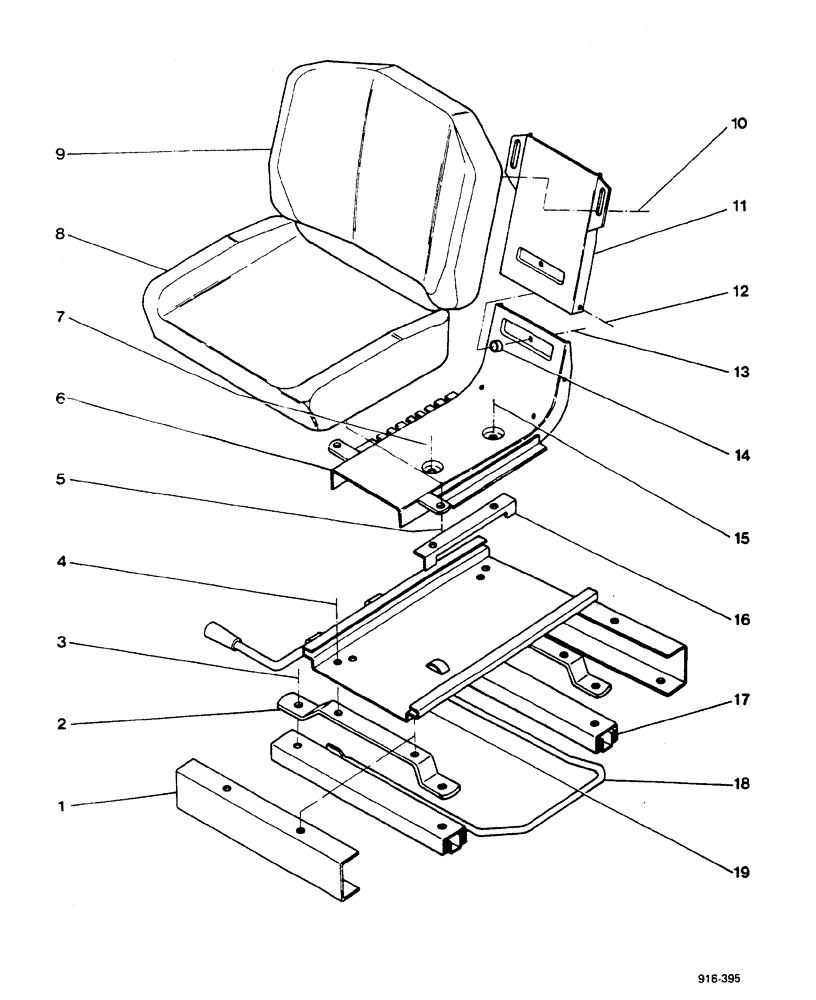

Запчасти Case 580F (328) - SEATS, AXIAL AND SIDESHIFT BACKHOE (90) - PLATFORM, CAB, BODYWORK AND DECALS

E41614

SEAT

ASSY., Includes: Ref. 1-19

1шт.

For S.S. backhoe

1шт.

E41618

SEAT

ASSY., Includes: Ref. 1-19

1шт.

For axial backhoe

1шт.

1

E42388

BRACKET

2шт.

For S.S. backhoe

1шт.

2

E42392

BRACKET

2шт.

For axial backhoe

1шт.

3

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

For axial backhoe

1шт.

3

E42393

TRACK SHOE

WASHER

4шт.

For axial backhoe

1шт.

3

825-1108

NUT,Hex, M8, Cl 8

4шт.

For axial backhoe

1шт.

4

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

4

E42393

TRACK SHOE

WASHER

4шт.

4

825-1108

NUT,Hex, M8, Cl 8

4шт.

5

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

5

E42394

WASHER

2шт.

6

E42382

FUNNEL

FRAME lower

1шт.

7

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

8

E42385

CUSHION

1шт.

9

E42386

BACKREST

1шт.

10

E42394

WASHER

2шт.

10

E42395

NUT

2шт.

11

E42383

FUNNEL

FRAME upper

1шт.

12

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

E42393

TRACK SHOE

WASHER

2шт.

12

825-1108

NUT,Hex, M8, Cl 8

2шт.

13

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

13

E42393

TRACK SHOE

WASHER

1шт.

13

825-1108

NUT,Hex, M8, Cl 8

1шт.

14

E42389

SPACER

1шт.

15

813-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

16

E42387

STOP

1шт.

17

E42390

CHUTE ASSY.

SET of SLIDE

1шт.

For axial backhoe

1шт.

18

E42391

LEVER

1шт.

For axial backhoe

1шт.

19

E42384

SLIDE

ASSY.

1шт.
