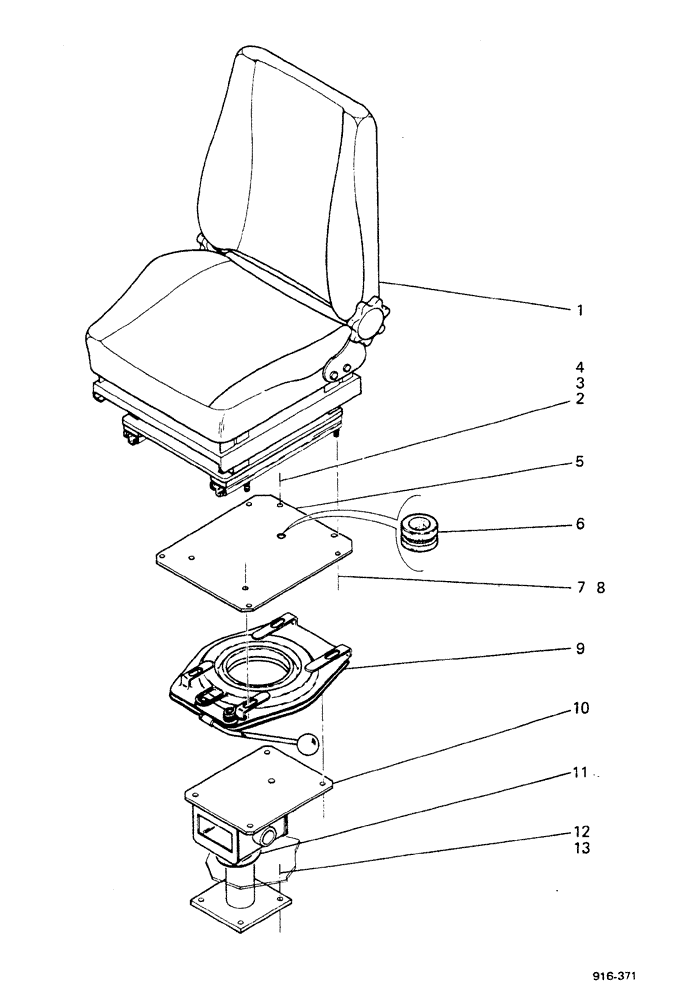

Запчасти Case 580F (326) - SEAT AND POST, FOR SWEDEN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

E41771

SEAT

see Figure 331E

1шт.

2

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

3

892-1108

LOCK WASHER,M8

4шт.

4

825-1108

NUT,Hex, M8, Cl 8

4шт.

5

E41643

PLATE

1шт.

6

E33336

GROMMET

1шт.

7

892-1108

LOCK WASHER,M8

4шт.

8

825-1108

NUT,Hex, M8, Cl 8

4шт.

9

E41772

LENS

PLATE swivel, see Figure 331C

1шт.

10

E41636

POST

1шт.

11

E41615

GASKET

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

4шт.
