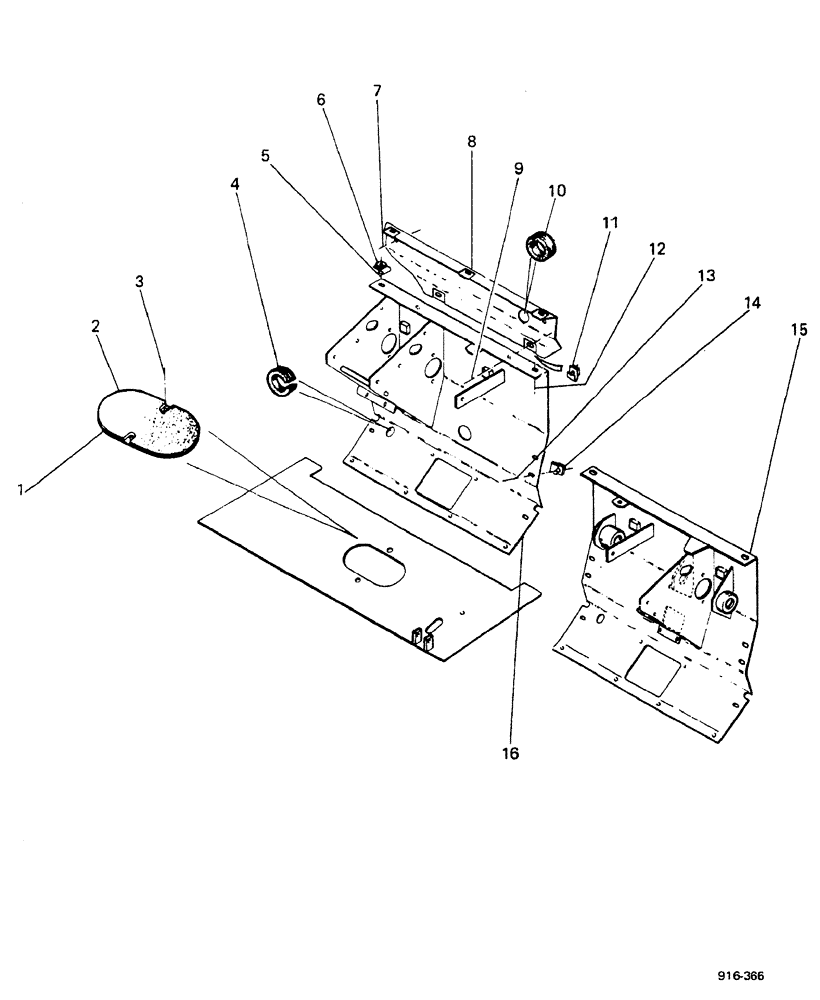

Запчасти Case 580F (322) - FIREWALLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

E40102

PLATE

COVER Includes: Ref. 2

1шт.

2

E40103

FOAM

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

E40305

GROMMET

TC

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

5

195-25

WASHER,3/8"

1шт.

6

131-634

SPRING NUT,J, Ret, 3/8"-16

2шт.

7

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

7

195-21

WASHER,5/16"

2шт.

8

E40304

PLATE

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

9

195-21

WASHER,5/16"

2шт.

10

E38764

GROMMET

SPARE PART TC

1шт.

10

E38764

GROMMET

SPARE PART DC

2шт.

11

131-636

SPRING NUT,J, Ret, 5/16"-18

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

12

195-25

WASHER,3/8"

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

13

195-25

WASHER,3/8"

6шт.

14

131-634

SPRING NUT,J, Ret, 3/8"-16

6шт.

15

E38157

FIREWALL, DC

1шт.

16

E38140

SHIELD

FIREWALL, TC

1шт.
