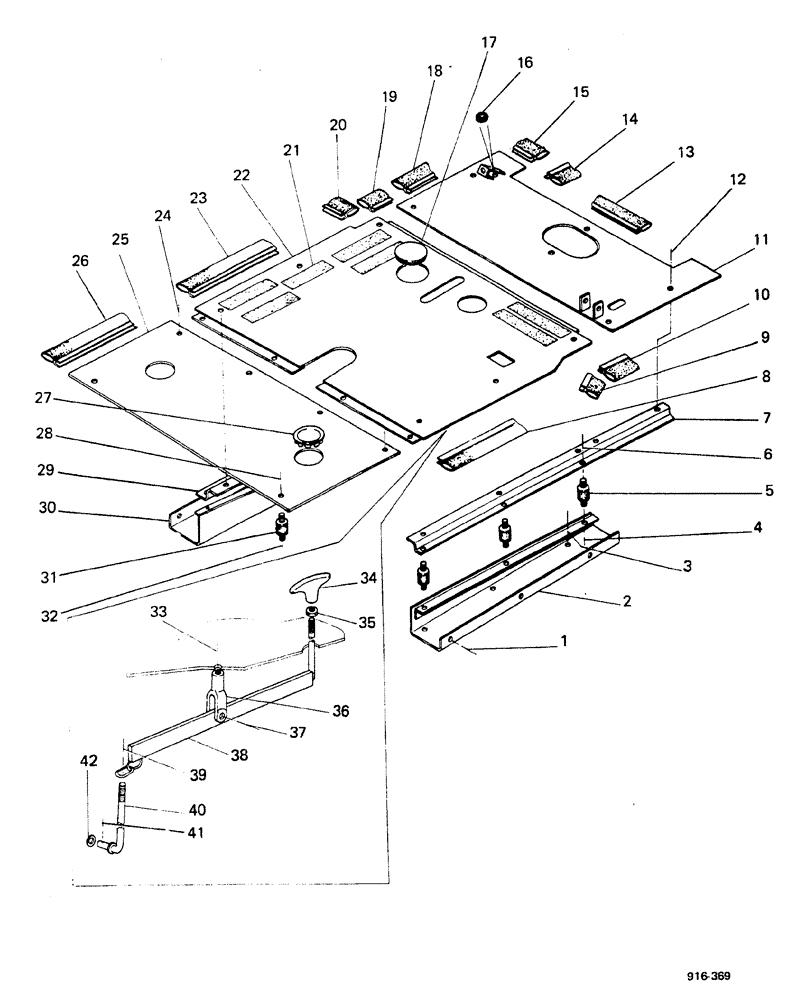

Запчасти Case 580F (316) - FLOOR PLATES AND 4 WHEEL DRIVE DROP BOX CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

1

92-6

LOCK WASHER,3/8"

6шт.

2

E38081

BRACKET

R.H.

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

6шт.

3

195-25

WASHER,3/8"

6шт.

4

892-1008

LOCK WASHER,M8

6шт.

4

825-1008

NUT,M8, Cl 8

6шт.

5

787044R1

DAMPER

MOUNT rubber

6шт.

6

825-1008

NUT,M8, Cl 8

6шт.

6

892-1008

LOCK WASHER,M8

6шт.

7

E38088

BRACKET

1шт.

8

E38443

LINING

1шт.

9

E38445

LINING

1шт.

9

E40873

PADDING, without cab

1шт.

10

E38444

LINING

1шт.

11

E40705

PLATE floor, DC

1шт.

11

E38493

PLATE ASSY.

floor, TC, Includes: Ref. 11 FOIL bitumen

1шт.

11

E38429

FOIL bitumen

1шт.

11

E40706

PLATE floor, without cab, DC

1шт.

11

E38132

PLATE floor, without cab, TC

1шт.

12

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

10шт.

12

92-6

LOCK WASHER,3/8"

10шт.

12

195-25

WASHER,3/8"

10шт.

13

E38435

LINING

1шт.

14

E38440

LINING

2шт.

15

E38496

LINING

2шт.

16

E11200

GROMMET

TC

1шт.

17

E40872

PLUG

SPARE PART without cab

1шт.

18

E38437

LINING

2шт.

19

E38671

LINING

1шт.

20

E38670

LINING

1шт.

20

E40874

PADDING, without cab

1шт.

21

D55216

PAD,2" x 9"

PAPER, without a cab

7шт.

22

E38125

PLATE ASSY.

floor

1шт.

22

E40879

PLATE floor, without cab

1шт.

23

E38442

GASKET

PADDING

2шт.

24

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

24

195-2020

WASHER,.344" x 1" x .065"

4шт.

25

E40084

PLATE, rear, Includes: Ref. 25, FOIL bitumen, for axial backhoe

1шт.

25

E38434

FOIL bitumen, for axial backhoe

1шт.

25

E40877

PLATE, rear, without cab, for axial backhoe

1шт.

25

E38491

PLATE

rear, Includes: Ref. 25, FOIL bitumen, for S.S. backhoe

1шт.

25

E38433

PLATE

FOIL bitumen, for S.S. backhoe

1шт.

25

E40875

BOX

PLATE, rear, without cab, for S.S. backhoe

1шт.

26

E38447

LINING

for axial backhoe

2шт.

26

E38446

PADDING, for S.S. backhoe

2шт.

27

205-72

HOLE PLUG BUTTON,3"

2шт.

28

825-1008

NUT,M8, Cl 8

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

28

195-2020

WASHER,.344" x 1" x .065"

2шт.

29

E38090

BRACKET

1шт.

30

E38086

BRACKET

L.H.

1шт.

31

71269

SHOCK ABSORBER

MOUNT rubber

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

32

825-1008

NUT,M8, Cl 8

2шт.

33

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

for 4 wheel drive

1шт.

33

92-8

LOCK WASHER,1/2"

For 4 wheel drive

1шт.

34

K956842

HANDLE

for 4 wheel drive

1шт.

35

K965369

JAM NUT

for 4 wheel drive

1шт.

36

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

for 4 wheel drive

1шт.

37

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

for 4 wheel drive

1шт.

37

195-33

WASHER,1/2"

for 4 wheel drive

1шт.

37

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

for 4 wheel drive

1шт.

38

E41686

LEVER

for 4 wheel drive

1шт.

39

825-1112

NUT,M12, Cl 8

for 4 wheel drive

2шт.

39

195-533

WASHER,1/2", SAE

For 4 wheel drive

2шт.

40

K957003

LEVER

CONTROL ROD, for 4 wheel drive

1шт.

41

K965374

PIN

cotter, for 4 wheel drive

1шт.

42

K965373

WASHER

for 4 wheel drive

1шт.
