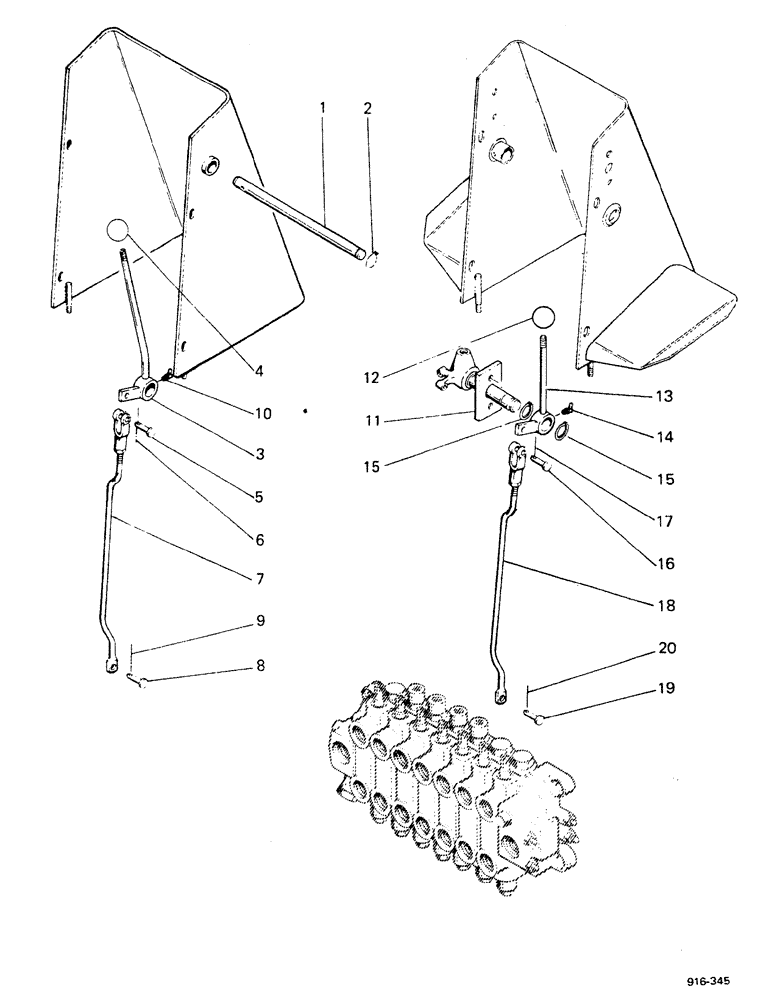

Запчасти Case 580F (306) - SIDE SHIFT BACKHOE, EXTENDAHOE CONTROL (84) - BOOMS, DIPPERS & BUCKETS

1

D67232

ROD

SHAFT For 5 lever controls

1шт.

2

D71829

SNAP RING,#87, Ext

For 5 lever controls

1шт.

3

E40639

LEVER

HANDLE For 5 lever controls

1шт.

4

D59912

KNOB

For 5 lever controls

1шт.

5

141-4

CLEVIS PIN,3/8" x 1.060"

For 5 lever controls

1шт.

6

132-25

COTTER PIN,3/32" x 5/8"

For 5 lever controls

1шт.

7

E38699

ROD

SPARE PART For 5 lever controls

1шт.

8

141-3

CLEVIS PIN,5/16" x .940"

For 5 lever controls

1шт.

9

132-25

COTTER PIN,3/32" x 5/8"

For 5 lever controls

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

For 5 lever controls

1шт.

11

E38828

BRACKET

SPARE PART PIVOT For 2 lever controls

1шт.

12

D59912

KNOB

For 2 lever controls

1шт.

13

D67242

HANDLE

SPARE PART For 2 lever controls

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

For 2 lever controls

1шт.

15

D71829

SNAP RING,#87, Ext

For 2 lever controls

2шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

For 2 lever controls

1шт.

17

132-25

COTTER PIN,3/32" x 5/8"

For 2 lever controls

1шт.

18

E38699

ROD

SPARE PART For 2 lever controls

1шт.

19

141-3

CLEVIS PIN,5/16" x .940"

For 2 lever controls

1шт.

20

132-25

COTTER PIN,3/32" x 5/8"

For 2 lever controls

1шт.
