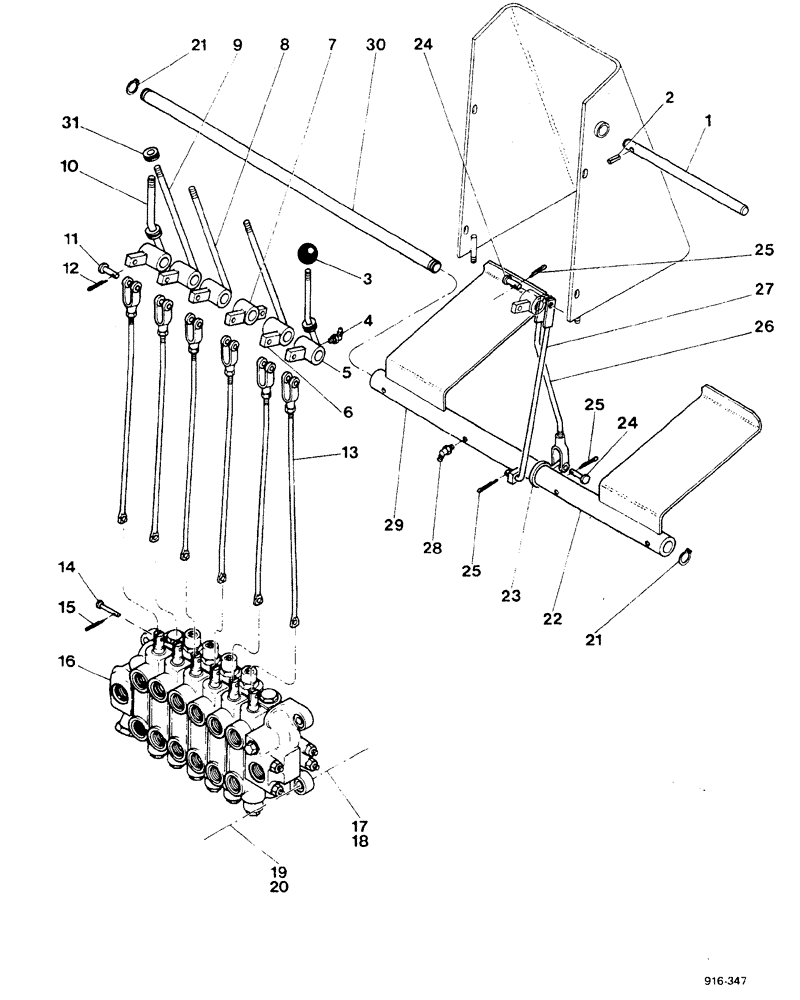

Запчасти Case 580F (302) - SIDE SHIFT BACKHOE, LEVER AND FOOT CONTROLS (84) - BOOMS, DIPPERS & BUCKETS

1

D67231

SHAFT

LEVER

1шт.

2

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

1шт.

3

D59912

KNOB

5шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

6шт.

5

E40536

CONTROL LEVER

HANDLE

1шт.

6

E40532

CONTROL LEVER

SPARE PART HANDLE

1шт.

7

E40597

DIPPER

SPARE PART BELLCRANK

1шт.

8

E40533

CONTROL LEVER

HANDLE

1шт.

9

E40534

CONTROL LEVER

HANDLE

1шт.

10

E40535

CONTROL LEVER

HANDLE

1шт.

11

141-4

CLEVIS PIN,3/8" x 1.060"

6шт.

12

132-25

COTTER PIN,3/32" x 5/8"

6шт.

13

E40626

ROD

6шт.

14

141-3

CLEVIS PIN,5/16" x .940"

6шт.

15

132-25

COTTER PIN,3/32" x 5/8"

6шт.

16

REF

INSTRUCTION

VALVE, see Figure 236

1шт.

17

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

18

95-8

WASHER,1/2"

3шт.

19

95-8

WASHER,1/2"

3шт.

20

131-654

LOCK NUT,1/2"-13, GB

3шт.

21

D71829

SNAP RING,#87, Ext

2шт.

22

E40622

PEDAL

1шт.

23

195-2097

WASHER,15/16" x 1 3/4" x .083"

3шт.

24

141-4

CLEVIS PIN,3/8" x 1.060"

2шт.

25

132-25

COTTER PIN,3/32" x 5/8"

3шт.

26

E40602

ROD

1шт.

27

E40601

ROD

1шт.

28

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

4шт.

29

D70348

PEDAL

1шт.

30

D70344

SHAFT

1шт.

31

E40600

RING

3шт.
