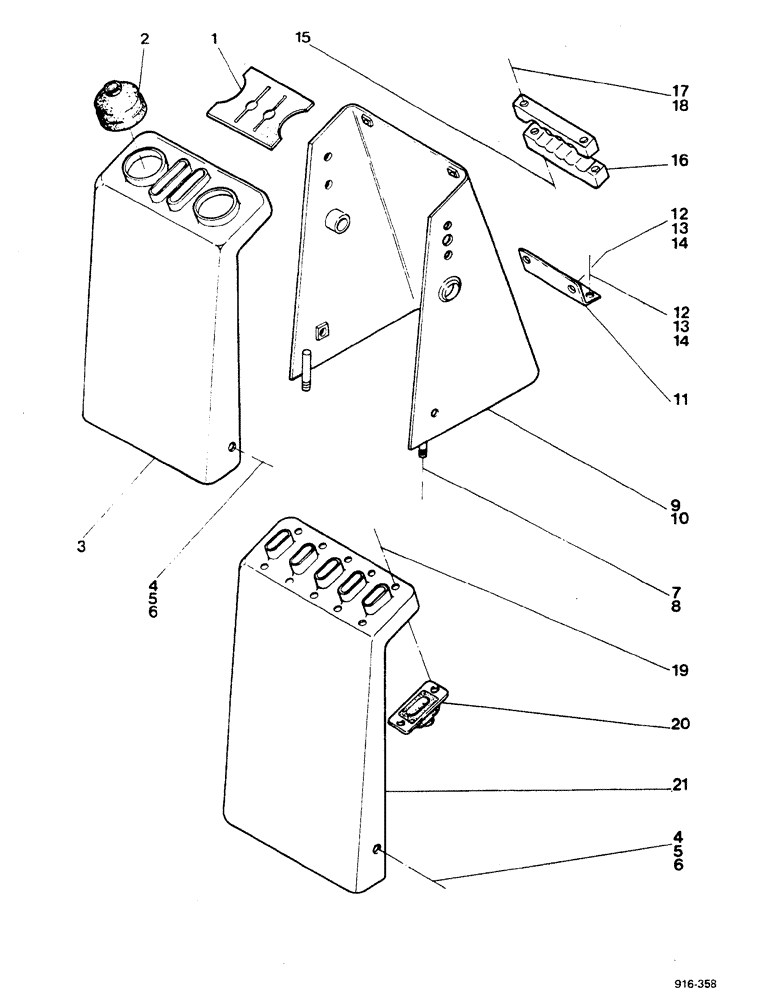

Запчасти Case 580F (300) - SIDE SHIFT BACKHOE, CONTROL TOWER (84) - BOOMS, DIPPERS & BUCKETS

1

E38703

PLATE

SPARE PART for 2 lever control

1шт.

2

E38702

CAP

SPARE PART BOOT, for 2 lever control

2шт.

3

E38672

PANEL

SPARE PART for 2 lever control

1шт.

4

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

5

92-4

LOCK WASHER,1/4"

4шт.

6

95-4

WASHER,1/4"

plain

4шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

2шт.

9

E38693

BRACKET

TOWER, for 2 lever control

1шт.

10

E40520

CONSOLE

TOWER, for 5 lever control

1шт.

11

D38292

COVER PLATE

PLATE

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

4шт.

15

REF

INSTRUCTION

SCREW, see Figure 283 Ref., Serial Range: 11-13

1шт.

16

D72608

CLAMP

STRAP

2шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

18

92-8

LOCK WASHER,1/2"

3шт.

19

E35646

SCREW

for 5 lever control

10шт.

20

D72302

BOOT

for 5 lever control

5шт.

21

E40518

PANEL

SPARE PART for 5 lever control

1шт.
