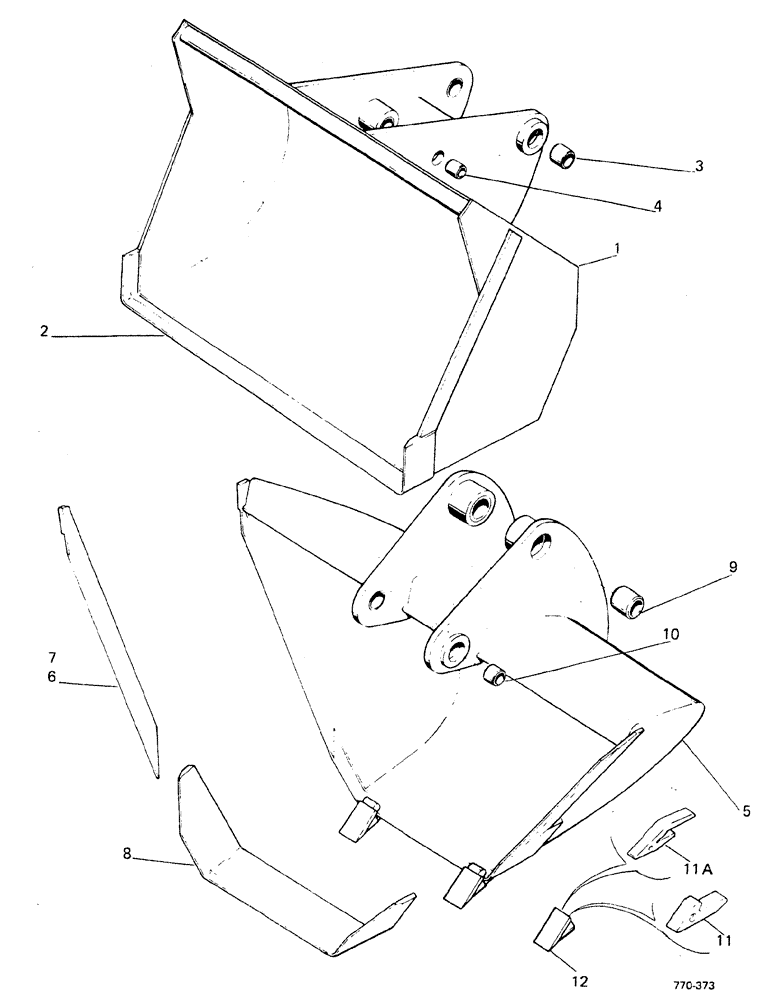

Запчасти Case 580F (266) - AXIAL AND SIDE SHIFT BACKHOE, BUCKETS (84) - BOOMS, DIPPERS & BUCKETS

1

D50682

BUCKET, Includes: Ref. 2, 3 and 4

1шт.

2

D95074

EDGE

BLADE

1шт.

3

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

2шт.

4

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

5

E15133

BUCKET

Includes: Ref. 6-11A

1шт.

6

D43331

EDGE, CUTTING

BLADE, left

1шт.

7

D43332

EDGE, CUTTING

BLADE, right

1шт.

8

D43341

EDGE, CUTTING

BLADE

1шт.

9

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

2шт.

10

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

11

D26368

SUPPORT

SHANK

2шт.

11a

D58499

SUPPORT

SHANK

2шт.

12

D58576

TOOTH

4.8"

1шт.

12

D58577

TOOTH

4.7"

1шт.
