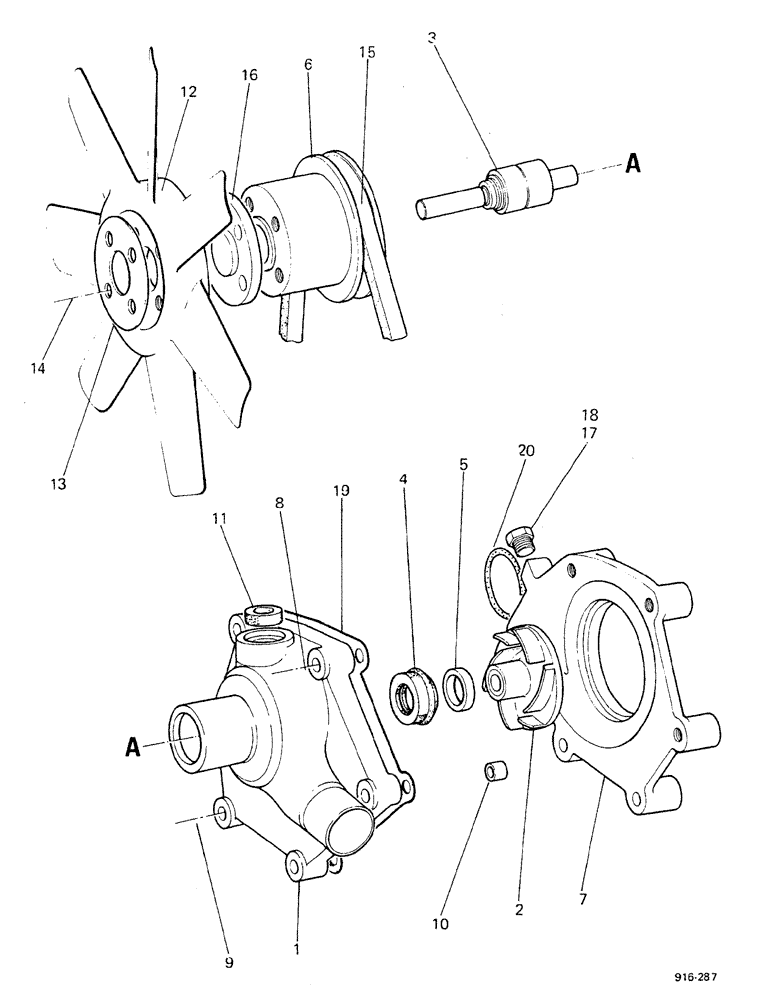

Запчасти Case 580F (004) - ENGINE, WATER PUMP (10) - ENGINE

K200679

PUMP

WATER ASSY.

1шт.

1

K200686

HOUSING

1шт.

2

K200687

IMPELLER

1шт.

3

K620202

BEARING ASSY

SHAFT and

1шт.

4

K200823

GLAND

SEAL

1шт.

5

K200821

RING

1шт.

6

K200824

PULLEY

1шт.

K965888

PACKAGE, REPAIR

WATER PUMP KIT, Includes: Ref. 3, 4, 5, 11, 19 and 20

1шт.

7

K952667

HOUSING

up to No. 131032 (Dry Clutch) and up to No, 150261 (Torque Converter), order K942843

1шт.

7

K942843

HOUSING

starting with No. 131033 (Dry Clutch) and starting with No. 150262 (Torque Converter)

1шт.

8

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

10

K31064

SLEEVE

Dowel, if used

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

11

K915330

SEALING RING

rubber

1шт.

12

K921359

FAN

suction

1шт.

13

K921361

SHIM

PLATE retaining

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

4шт.

15

K952514

V-BELT

Fan

1шт.

16

K953379

BUSHING

SPARE PART

1шт.

17

K623829

PLUG

up to No. 131032 (Dry Clutch) and up to No. 150261 (Torque Converter)

1шт.

18

K19500

GASKET

WASHER, up to No. 131032 (Dry Clutch) and up to No. 150261 (Torque Converter)

1шт.

19

K942844

GASKET

1шт.

20

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

1шт.
