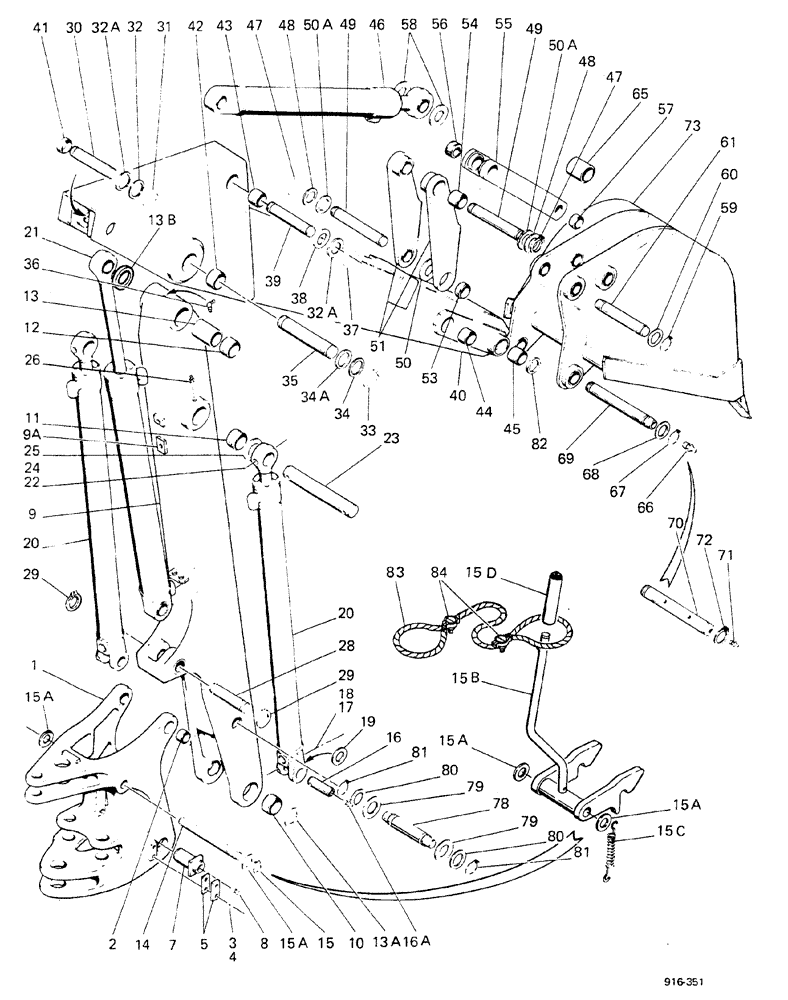

Запчасти Case 580F (254) - AXIAL BACKHOE, CONTROL TOWER AND BOOM (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
D67791
BRACKET
TOWER Includes: Ref. 2
1шт.
2
D49429
BUSHING
2шт.
3
13-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
cap
4шт.
4
92-8
LOCK WASHER,1/2"
4шт.
5
D50149
BLOCK
2шт.
7
D50700
PIN
2шт.
8
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
9
D69988
BOOM
Includes: Ref. 9A-13
1шт.
9a
D50004
BLOCK
for extendahoe
2шт.
10
D50698
BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L
2шт.
11
D95362
BUSHING
2шт.
12
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
2шт.
13
D37416
BUSHING
1шт.
13a
D44813
SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk
1шт.
13b
72990
WASHER
thickness .06"
1шт.
14
D55996
SHAFT
1шт.
15
D56051
SNAP RING,#137. Ext
#137, Ext
2шт.
15a
195-2140
WASHER,1 7/16" x 2" x .065"
1шт.
15b
D75674
LEVER
and LATCH
1шт.
15b
E41782
LEVER and LATCH, for Sweden only
1шт.
15c
D54397
SPRING
1шт.
15d
D75300
KNOB
1шт.
16
D49866
PIN,38.1mm OD x 96.52mm L
2шт.
16a
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
17
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
2шт.
18
131-352
LOCK NUT,3/8"-16, GA
2шт.
19
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
2шт.
20
REF
INSTRUCTION
CYLINDER, see Figure 218
2шт.
21
REF
INSTRUCTION
CYLINDER, see Figure 220
1шт.
22
13-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
2шт.
23
D49865
PIN,50.8mm OD x 304.8mm L
1шт.
24
131-354
LOCK NUT,1/2"-13, GA
2шт.
25
195-2155
WASHER,2 1/16" x 3" x .109"
1шт.
26
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
28
D72359
PIN,44.45mm OD x 142.24mm L
1шт.
29
D25280
SNAP RING,#175, Ext
2шт.
30
D52522
PIN,44.45mm OD x 211.84mm L
1шт.
31
D25280
SNAP RING,#175, Ext
2шт.
32
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
thickness 1.05"
1шт.
32a
51200255
SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk
thickness .0625
1шт.
33
D26919
SNAP RING,#200, Ext
2шт.
34
195-2155
WASHER,2 1/16" x 3" x .109"
thickness 1.05"
1шт.
34a
D44813
SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk
1шт.
35
D45523
PIN,50.8mm OD x 276.35mm L
1шт.
36
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
1шт.
37
D25280
SNAP RING,#175, Ext
2шт.
38
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
thickness 1.05"
1шт.
39
D52522
PIN,44.45mm OD x 211.84mm L
1шт.
40
D63796
ARM
Dipper, Includes: Ref. 41-45
1шт.
41
D43940
BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L
2шт.
42
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
2шт.
43
D34340
BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L
2шт.
45
D55626
BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L
2шт.
46
REF
INSTRUCTION
CYLINDER, see Figure 222
1шт.
47
D25280
SNAP RING,#175, Ext
4шт.
48
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
4шт.
49
D53818
PIN,44.45mm OD x 278.89mm L
2шт.
50
D55732
WASHER
2шт.
50a
51200255
SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk
1шт.
51
E35389
LINK
Includes: Ref. 53 and 54
2шт.
53
D46405
BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L
1шт.
54
D42788
BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L
1шт.
55
D61244
LINK
Includes: Ref. 56 and 57
2шт.
56
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1шт.
57
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1шт.
58
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
1шт.
59
D25279
SNAP RING,M35, Int
2шт.
60
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
1шт.
61
D30899
PIVOT PIN,38.1mm OD x 338.14mm L
long, 13.31"
1шт.
65
D37450
SPACER,40.89mm ID x 48.26mm OD x 63.5mm L
1шт.
66
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
67
D25280
SNAP RING,#175, Ext
2шт.
68
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
1шт.
69
D64799
PIN,44.45mm OD x 370.84mm L
long, 14.57"
1шт.
70
D55584
PIN,44.45mm OD x 327.15mm L
long, 12.88"
1шт.
71
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
72
D25280
SNAP RING,#175, Ext
2шт.
73
REF
INSTRUCTION
BUCKET, see Figures, Serial Range: 260-266
1шт.
78
D55082
LOCK PIN,38.1mm OD x 208.53mm L
1шт.
79
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
1шт.
80
D31312
WASHER
1шт.
81
D25279
SNAP RING,M35, Int
2шт.
82
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
2шт.
83
E41755
CABLE PULLING GRIP
for Sweden only
1шт.
84
E41754
CLIP
for Sweden only
2шт.
Выбрано товаров: 87
