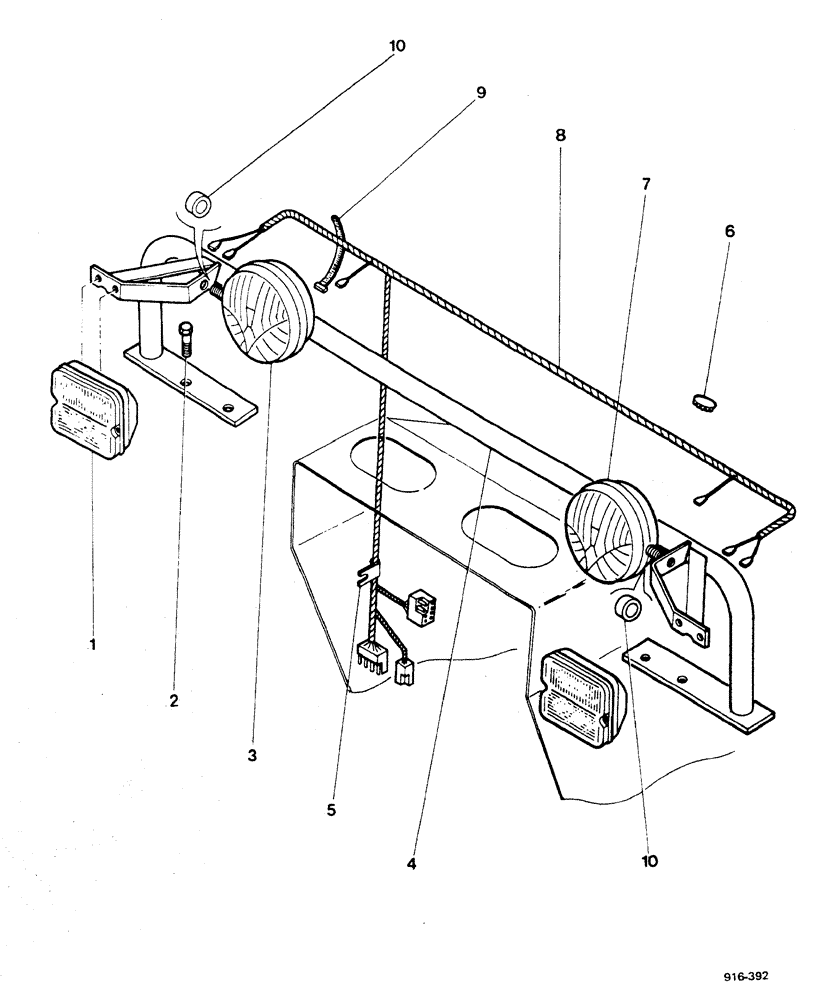

Запчасти Case 580F (368) - HEAD LAMPS, WITHOUT CAB (55) - ELECTRICAL SYSTEMS

1

E37480

HEADLIGHT

front, Includes: LENS, LIGHT and BULB

2шт.

1

E18490

LENS

1шт.

1

E32056

LAMP, TAIL

LIGHT, TAIL 21 watts

1шт.

1

E32057

BULB

shuttle, 5 watts

1шт.

2

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

RH side

2шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

L.H. side

2шт.

2

92-8

LOCK WASHER,1/2"

4шт.

2

25-108

NUT,1/2"-13, G5

4шт.

3

E42170

LAMP

head, R. H., Includes: GLASS LENS

1шт.

3

E41976

GLASS

LENS

1шт.

4

E40868

BRACKET

1шт.

5

E41349

CLAMP

4шт.

6

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

7

E42171

LAMP

head, L.H., Includes: GLASS LENS

1шт.

7

E41976

GLASS

LENS

1шт.

8

E40316

HARNESS

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

4шт.

10

E42346

BUSHING

2шт.

E32190

BULB

12 volts, 45/40 watts, yellow

2шт.

E32191

BULB

12 volts, 45/40 watts, white

2шт.
