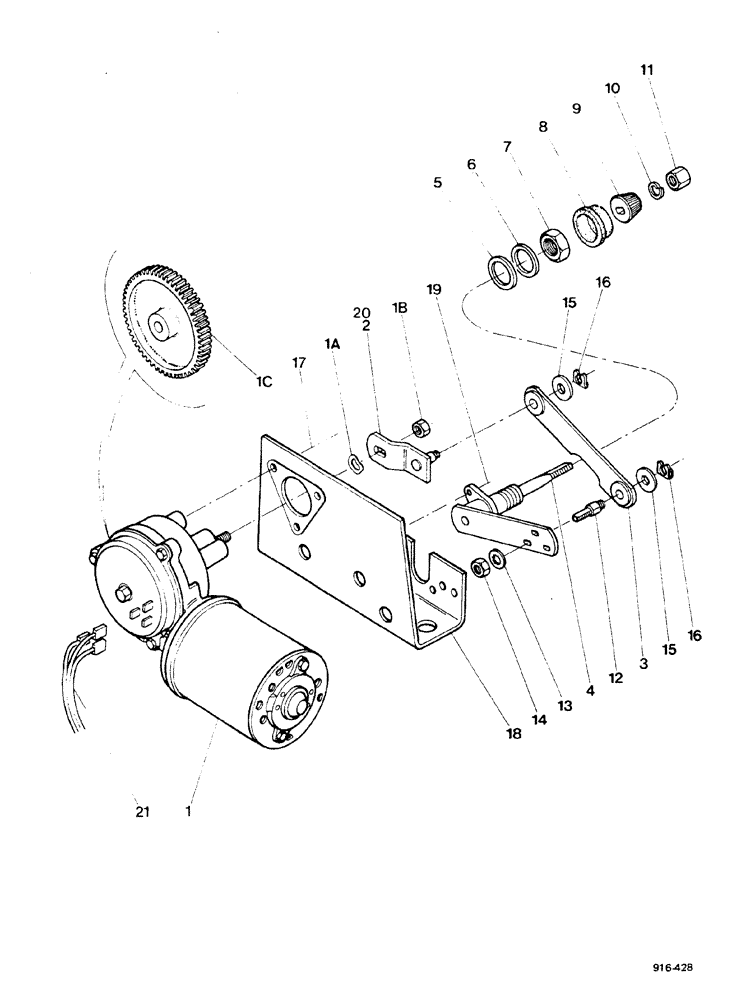

Запчасти Case 580F (362) - WINDSHIELD WIPER MOTORS (55) - ELECTRICAL SYSTEMS

F93602

MOTOR, ELECTRIC

ASSY., front, order F96772 and E41946, Includes: Ref. 1-19

1шт.

F96772

WIPER MOTOR

ASSY., front, Includes: Ref. 1-19

1шт.

1

F96637

MOTOR, ELECTRIC

ASSY., rear, order F96765 and E41946, for Germany only order F96765 and E41946 and A36091, Includes: Ref. 1A, 1B and 1C

1шт.

1

F96765

WIPER MOTOR

MOTOR, WIPER ASSY., rear, Includes: Ref. 1A, 1B and 1C

1шт.

1a

D71411

WASHER

1шт.

1b

F44452

LOCK NUT

1шт.

1c

N6029

GEAR

drive

1шт.

2

F64210

LEVER

ARM

1шт.

3

D71427

LINK,85.85mm L

1шт.

D72848

SHAFT

ASSY., Includes: Ref. 4-14

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

5

D71417

SPECIAL WASHER

1шт.

6

D71418

WASHER

1шт.

7

D71419

NUT

1шт.

8

D71420

CAP

1шт.

9

D71421

TOOL

DRIVER

1шт.

10

193-9

LOCK WASHER,Ext Tooth, 5/16"

1шт.

11

D71422

NUT

1шт.

12

D73642

PIN

1шт.

13

193-60

LOCK WASHER,Int Tooth, 1/4"

1шт.

14

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

15

A22431

WASHER

2шт.

16

D71414

CLIP

2шт.

17

D72849

SCREW

and WASHER, order 182-528 and 192-18

3шт.

18

D72850

BRACKET

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW and WASHER, order 182-528 and 192-18

2шт.

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

1шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

1шт.

20

A36091

ARM

for Germany only

1шт.

21

E41946

HARNESS

1шт.
