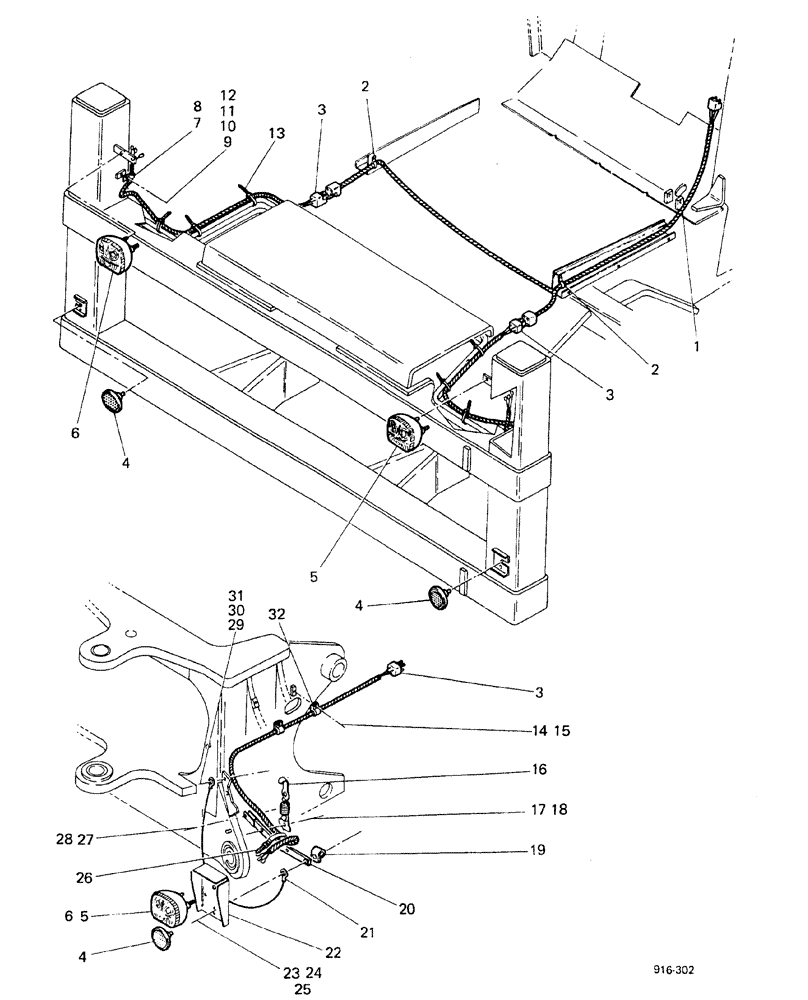

Запчасти Case 580F (040) - ELECTRICAL, REAR LIGHTS (55) - ELECTRICAL SYSTEMS

1

E41189

HARNESS

1шт.

2

E40319

CLAMP

2шт.

3

E40262

HARNESS

SPARE PART

2шт.

4

E41350

REFLECTOR

2шт.

5

E37274

INTERIOR LIGHT

rear, R.H., Includes Lens, Bulb and Light

1шт.

5

E33509

LENS

1шт.

5

E32057

BULB

shuttle, 5 W

1шт.

5

E32056

LAMP, TAIL

LIGHT, TAIL 21 W

2шт.

6

E37275

LIGHT ASSY.

rear, L.H., Includes Lens, Bulb and Light

1шт.

6

E33508

LENS

1шт.

6

E32057

BULB

shuttle, 5 W

1шт.

6

E32056

LAMP, TAIL

LIGHT, TAIL 21 W

2шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

for Germany only

6шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

11

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

For Germany only

6шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

for Germany only

6шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

8шт.

14

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

16

E31002

FASTENER

SPARE PART HOOK

2шт.

17

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

2шт.

18

86625061

NUT,1/4"-20, GB

2шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

20

E30998

ARM

BAR

2шт.

21

E33915

CABLE

WIRE

2шт.

22

E30935

BRACKET

SPARE PART

2шт.

23

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

25

9635082

NUT,5/16" - 18, Gr 5

4шт.

26

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

4шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

28

131-52

NUT,3/8"-16, GC

2шт.

29

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

cap

2шт.

30

129-37

NUT,#10-32

2шт.

31

193-6

LOCK WASHER,Ext Tooth, #10

2шт.

32

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.
