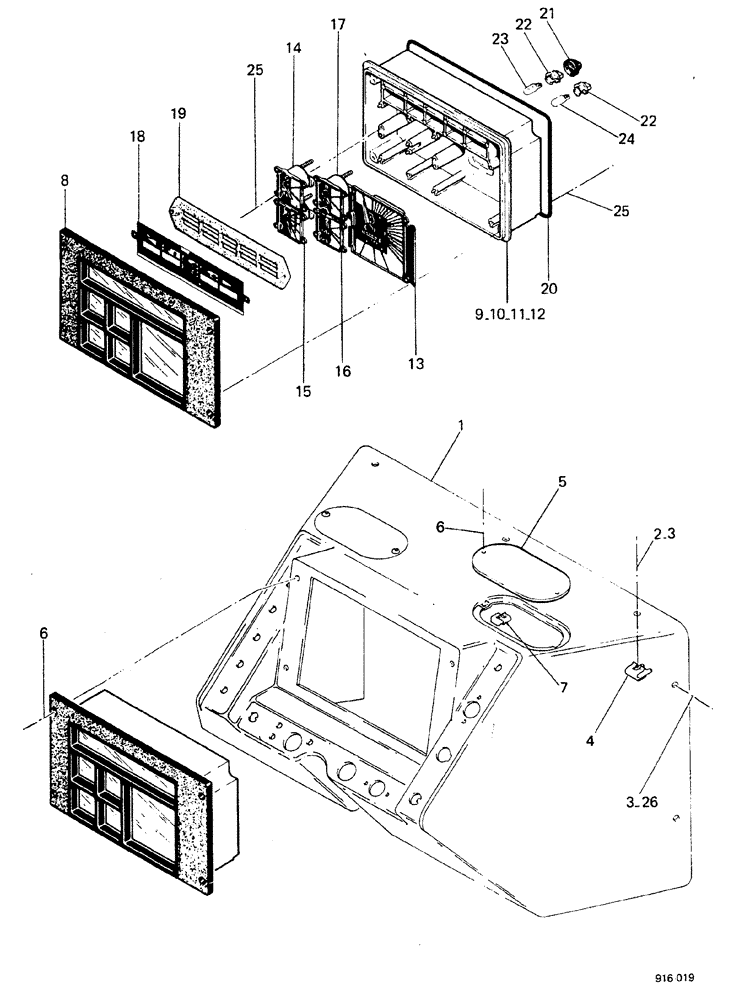

Запчасти Case 580F (038) - ELECTRICAL, INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

E41375

PANEL

instrument

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

3

195-521

WASHER,5/16", SAE

7шт.

4

131-641

NUT

7шт.

5

D78247

COVER

2шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

8шт.

7

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

8шт.

D64276

CLUSTER

instrument, TC

1шт.

D67149

CLUSTER

instrument, DC, Includes all References below

1шт.

8

D71334

LENS

1шт.

D71335

CASE ASSY.

complete, Includes: Ref. 9, 10, 11 and 12

1шт.

9

NSS

NOT SOLD SEPARAT

CASE

1шт.

10

NSS

NOT SOLD SEPARAT

CIRCUIT BOARD

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP

12шт.

12

NSS

NOT SOLD SEPARAT

GASKET

1шт.

13

N6805

TACHOMETER

1шт.

14

N6806

ELECTRICAL GAUGE

1шт.

15

A47688

ELECTRICAL GAUGE

1шт.

16

N6807

ELECTRICAL GAUGE

1шт.

17

N6808

GAUGE

TC

1шт.

18

N6809

INDICATOR

LENS

1шт.

19

D71342

GASKET,3.05mm Thk

1шт.

20

D71343

GASKET,4.45mm Thk x 249.68mm ID

2шт.

21

D71344

COVER

BOOT rubber

3шт.

22

A47125

PEDESTAL

SOCKET

9шт.

23

D71346

TAIL LAMP,12V

No. 168

6шт.

24

W10478

LAMP

No. 194

3шт.

25

A45093

SCREW,Hex Slotted, 12.70"

12шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.
