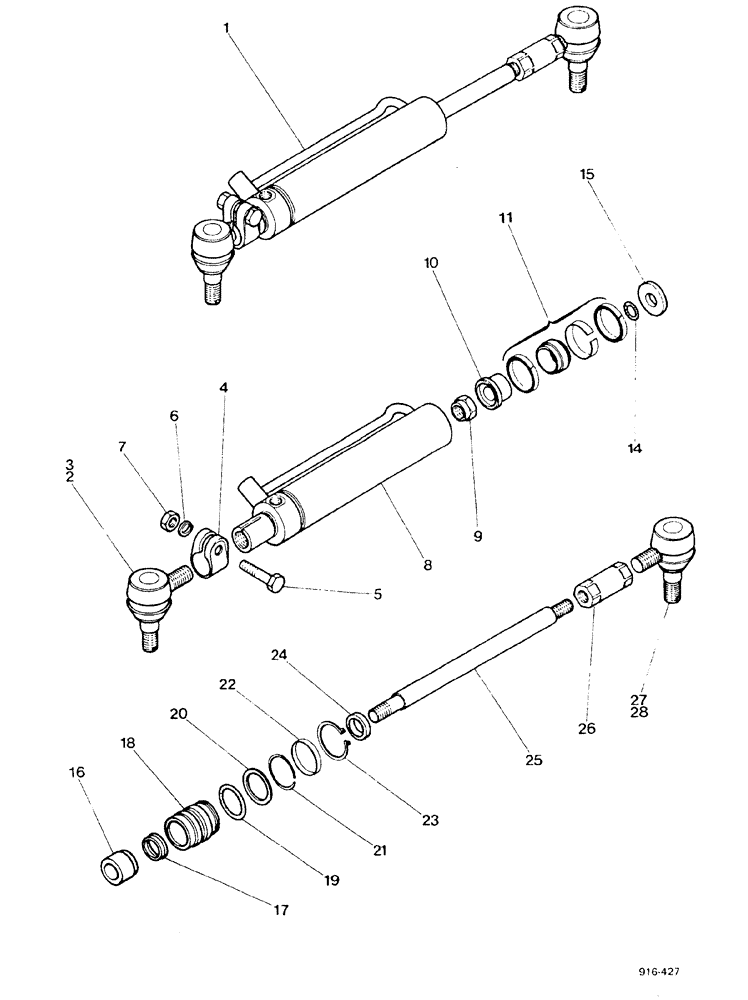

Запчасти Case 580F (147A) - STEERING, CYLINDER (41) - STEERING

1

E41879

CYLINDER

up to No. 3.740.847, Includes: Ref. 2-28

2шт.

For 2 wheel drive

1шт.

234466A1R

REMAN-HYD CYLINDER

580F AFTER S/N 3739160 (EUROPE), Reman For New P/N E41879

2шт.

234466A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

E41880

CYLINDER

starting with No. 3.740.070 and 3.7329.787, 3.739.792, 3.739.795, 3.739.800 and 3.739.816, Includes: Ref. 2-28

2шт.

For 4 wheel drive

1шт.

234466A1R

REMAN-HYD CYLINDER

580F AFTER S/N 3739160 (EUROPE), Reman For New P/N E41880

2шт.

234466A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

A40962

BALL JOINT

Includes: Ref. 3

1шт.

3

A41424

SEAL

BOOT

1шт.

E42059

COLLAR CLAMP

ASSY., Includes: Ref. 4, 5, 6 and 7

1шт.

4

E42060

CLAMP

1шт.

5

E42061

SCREW

cap

1шт.

6

E42062

WASHER

1шт.

7

E42063

NUT

SPARE PART

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE

1шт.

9

E42724

NUT

1шт.

10

E42726

PISTON

1шт.

11

E42041

PACKING

1шт.

Part of KIT P/N E42040

1шт.

14

E42042

O-RING

1шт.

15

E42725

WASHER

1шт.

E42045

SEAL

GLAND ASSY., Includes: Ref. 16-24

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

17

E42047

SEAL

1шт.

18

NSS

NOT SOLD SEPARAT

GLAND

1шт.

19

E42043

O-RING

1шт.

Part of KIT P/N E42040

1шт.

20

E42044

RING

BUSHING

1шт.

Part of KIT P/N E42040

1шт.

21

E42049

RING

1шт.

22

E42050

BUSHING

1шт.

23

E42051

RING

snap

1шт.

24

E42052

WIPER SEAL,18mm ID x 28mm OD x 7mm Thk

1шт.

E42054

KIT

ROD ASSY., up to No. 3.740.847

1шт.

For 2 wheel drive

1шт.

E42057

STEERING LEVER

ROD ASSY., starting with No. 3.740.070 and 3.739.787, 3.739.792. 3.739.795, 3.739.800 and 3.739.816, Includes: Ref. 25-28

1шт.

For 4 wheel drive

1шт.

25

NSS

NOT SOLD SEPARAT

ROD

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

NSS

NOT SOLD SEPARAT

BALL JOINT, Includes: Ref. 28

1шт.

28

A41424

SEAL

BOOT

1шт.

E42040

SEAL KIT

Includes: Ref. 11, 19 and 20

1шт.
