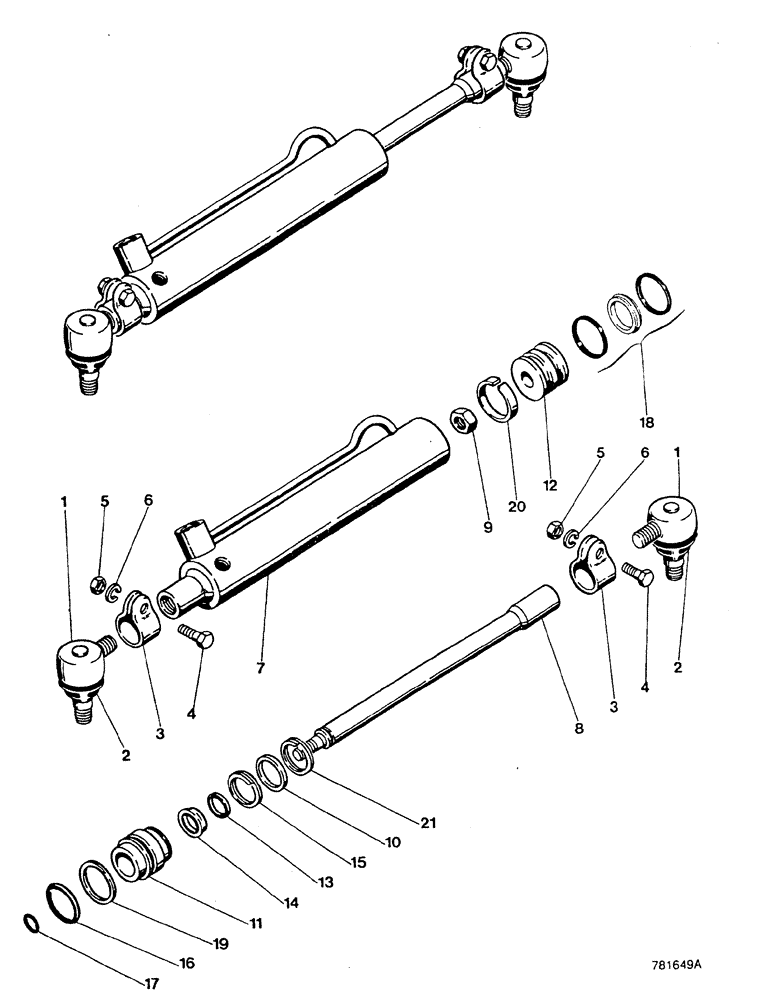

Запчасти Case 580F (146) - STEERING, CYLINDER (41) - STEERING

D84800

CYLINDER

order E41879, see Figure 147A, up to No. 3.740.846, for 2 wheel drive, order 218-5135 and E41880, see Figure 147A, starting with No. 3.740.069, for 4 wheel drive, Inlcudes: Ref. 1-21

2шт.

1

A40962

BALL JOINT

Includes: Ref. 2

2шт.

2

A41424

SEAL

BOOT

1шт.

3

A27080

CLAMP

Includes: Ref. 4, 5 and 6

2шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE

1шт.

8

A44642

ROD

1шт.

9

131-1145

JAM NUT,5/8" - 18

1шт.

10

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

1шт.

11

D83189

GLAND

ASSY.

1шт.

12

D83190

PISTON

1шт.

D83184

GASKET KIT

Includes: Ref. 13-20

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER

1шт.

14

D83187

SEAL,19.05mm ID x 25.4mm OD x 7.18mm W

1шт.

15

NSS

NOT SOLD SEPARAT

RING

1шт.

16

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

1шт.

17

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

1шт.

18

D83185

SEAL

1шт.

19

NSS

NOT SOLD SEPARAT

RING

1шт.

20

D83186

SEAL

1шт.

21

A44654

SNAP RING,#125, 1.188", Ext Spiral

1шт.
