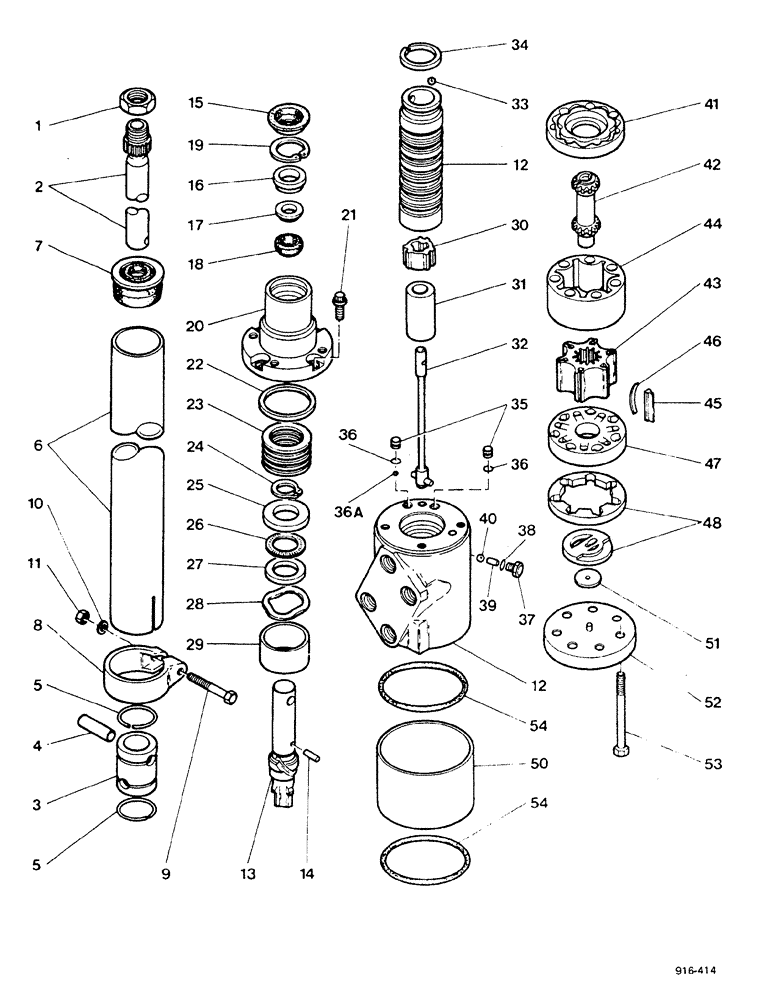

Запчасти Case 580F (142) - STEERING, HAND PUMP (41) - STEERING

E40675

PUMP

manual steering, TRW Gemmer France, Includes: Ref. 1-54

1шт.

1

A14567

JAM NUT

1шт.

2

D71310

SHAFT

1шт.

D72851

KIT

Includes: Ref. 3, 4 and 5

1шт.

3

NSS

NOT SOLD SEPARAT

COUPLING

1шт.

4

L35654

PIN

2шт.

5

NSS

NOT SOLD SEPARAT

RING

2шт.

E42065

SLEEVE CYLINDER

JACKET, complete, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

JACKET

1шт.

7

L35675

SEAL

1шт.

L35657

CLAMP

complete, Includes: Ref. 8, 9, 10 and 11

1шт.

8

NSS

NOT SOLD SEPARAT

CLAMP

1шт.

9

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

1шт.

11

129-122

NUT,5/16"-24, G5

1шт.

D73670

PUMP

complete, Includes: Ref. 12-54

1шт.

D89898R

REMAN-STEERING VALVE

580F CASE CONSTRUCTION KING LOADER BACKHOE AFTER S/N 3739160 (EUROPE), complete, Reman for New PN D73670

1шт.

D89898C

CORE-STEERING VALVE

Return Number

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL, complete

1шт.

13

A43551

SHAFT

1шт.

14

D53297

PIN

1шт.

A47038

SEAL KIT,Pump Shaft

Includes: Ref. 15, 16, 17 and 18

1шт.

15

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

SPACER

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL

1шт.

18

NSS

NOT SOLD SEPARAT

RING

1шт.

19

A21145

SNAP RING,1.25, Int, #125

1.25", Int, #125

1шт.

20

D65139

COVER

1шт.

21

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

4шт.

22

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

1шт.

23

A44435

SHIM

SET OF

1шт.

24

A43720

RING

1шт.

25

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

1шт.

26

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

1шт.

27

F19634

BEARING WASHER

1шт.

28

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

1шт.

29

A43728

SPACER

1шт.

30

A43554

RING

1шт.

31

L36011

BUSHING

1шт.

32

L36010

BAR

1шт.

33

211-9

BALL,5/16" Dia

1шт.

34

A43560

SPRING

RING

1шт.

L36015

PLUG

complete, Includes: Ref. 35 and 36

1шт.

quantity is 1 or 2

1шт.

35

NSS

NOT SOLD SEPARAT

PLUG

1шт.

36

A43729

O-RING

1шт.

36a

211-7

BALL,1/4" Dia

If used

1шт.

F82943

VALVE

check, complete, if used, Includes: Ref. 37, 38, 39 and 40

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG

1шт.

38

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

1шт.

40

211-7

BALL,1/4" Dia

1шт.

41

A43569

BUSHING

1шт.

42

A43568

LINK

1шт.

D78406

ROTOR

SET OF, Includes: Ref. 43, 44, 45 and 46

1шт.

43

NSS

NOT SOLD SEPARAT

GEAR

1шт.

44

NSS

NOT SOLD SEPARAT

GEAR

1шт.

45

A42778

LOCK VALVE

VANE

6шт.

46

A42219

SPRING

6шт.

47

A43573

MANIFOLD

1шт.

48

A43574

COMMUTATOR

1шт.

50

E38674

RING

SPARE PART RETAINER

1шт.

51

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

1шт.

52

A45182

COVER

1шт.

53

D71316

BOLT

7шт.

54

E38673

GASKET

2шт.
