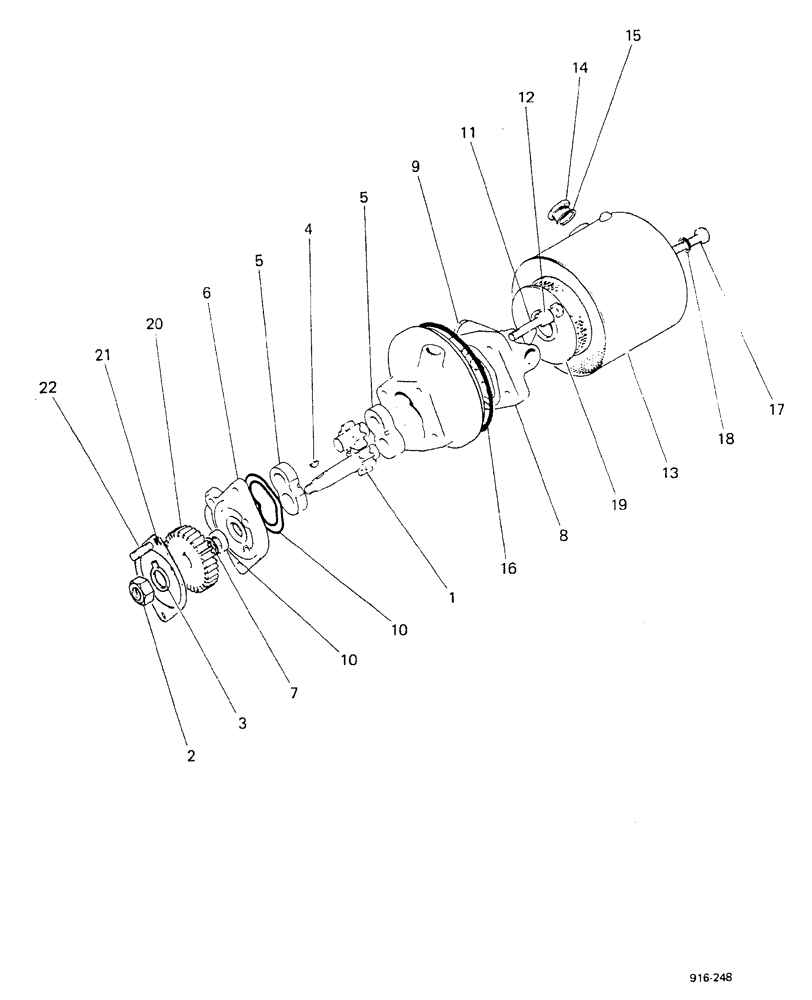

Запчасти Case 580F (140) - POWER STEERING PUMP AND RESERVOIR (41) - STEERING

K953152

PUMP

AND RESERVOIR, complete, Includes: Ref. 1-19

1шт.

K206595R

REMAN-HYD PUMP

580F AFTER S/N 3739160 (EUROPE), Reman for New PN K953152

1шт.

K206595C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

K964934

GEAR

ROTOR, complete

1шт.

2

25-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

3

K626380

WASHER

tab

1шт.

4

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(No. 405)

1шт.

5

K962189

BEARING

2

1шт.

6

K964925

FLANGE

SPARE PART mounting

1шт.

7

K962097

RING, SNAP

RING SNAP

1шт.

8

K964923

COVER

1шт.

9

K964632

VALVE

relief

1шт.

10

K964935

SEAL

1шт.

11

K964921

BOLT

4шт.

192-21

LOCK WASHER,3/8"

4шт.

12

K964920

PIN

RING

2шт.

13

K964933

TANK

complete, Includes: Ref. 14-19

1шт.

14

K623825

PLUG

filler

1шт.

15

K626793

WASHER

1шт.

16

K965217

RING

1шт.

17

K964930

BOLT

1шт.

18

K964928

SEAL

1шт.

19

K964954

FILTER

SET

1шт.

20

K945098

PINION

GEAR, 28 teeth

1шт.

21

K919729

GASKET,0.76mm Thk

1шт.

22

K608147

STUD

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.
